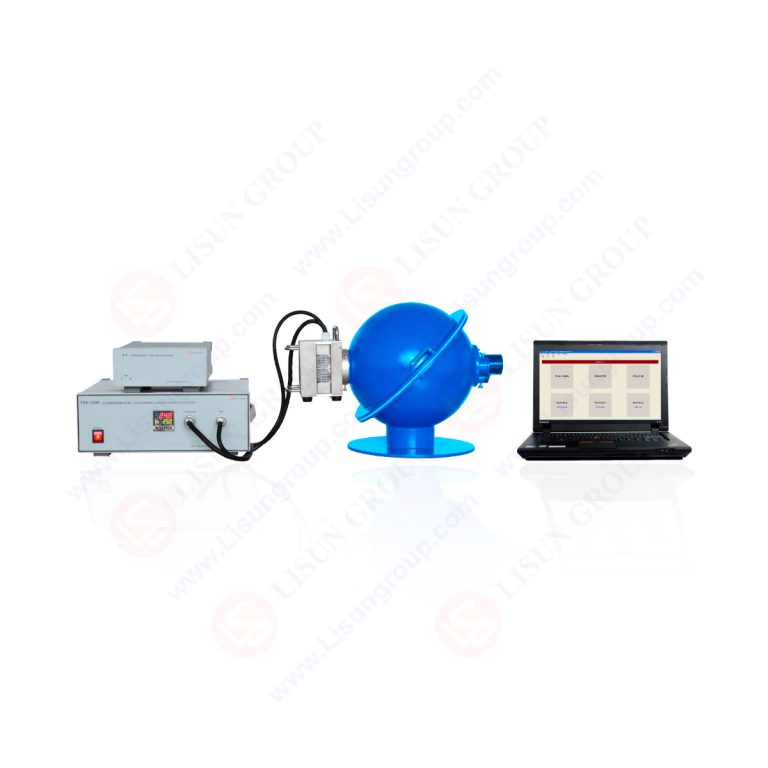

Thermal Resistance Spectroradiometric System for LED

Thermal parameters constitute the critical performance indicators for LED quality assessment. Temperature variations significantly impact optical parameters, colorimetric parameters, electrical parameters, and operational lifespan of LED devices. Consequently, thermal management design and control represent essential considerations for manufacturers and end-users. In accordance with relevant international standards including IEC 60747-5-3, the TRS-1000 system performs integrated testing of optical, colorimetric, electrical, and thermal parameters while recording real-time parameter variation curves.

LED Thermal Resistance Test and Spectroradiometric Measurement System Technical Specifications

1) Thermal Parameters Measurement Capabilities

• Measured parameters: Junction temperature (Tj), thermal resistance (Rth), and K-factor
• Thermal sink temperature range: 5℃ to 90℃
• Temperature control system accuracy: ±1℃
• Junction temperature measurement accuracy: ±1℃

2) Optical and Colorimetric Parameters Measurement Capabilities

• Measured parameters: Spectral power distribution, chromaticity coordinates (CIE 1931), correlated color temperature (CCT), peak wavelength, dominant wavelength, spectral bandwidth, red ratio, color rendering index (CRI), luminous flux, and optical power
• Wavelength measurement range: 380 nm to 780 nm
• Wavelength accuracy: ±0.3 nm
• Chromaticity coordinate repeatability: ±0.001 (under standard illuminant A)
• Spectral sampling interval: 1 nm or 5 nm selectable
• Photometric repeatability: 1%
• CCT measurement range: 1000 K to 100,000 K
• Dominant wavelength measurement range: 380 nm to 700 nm
• Detection system: 2048-element linear CCD array
• Integration time range: 6 μs to 10 s

3) Electrical Parameters Measurement Capabilities

• Measured parameters: Forward voltage (Vf) and forward current (If)
• Output current range: 1 mA to 3000 mA
• Output voltage range: 45 V maximum
• Maximum LED power dissipation: 20 W
