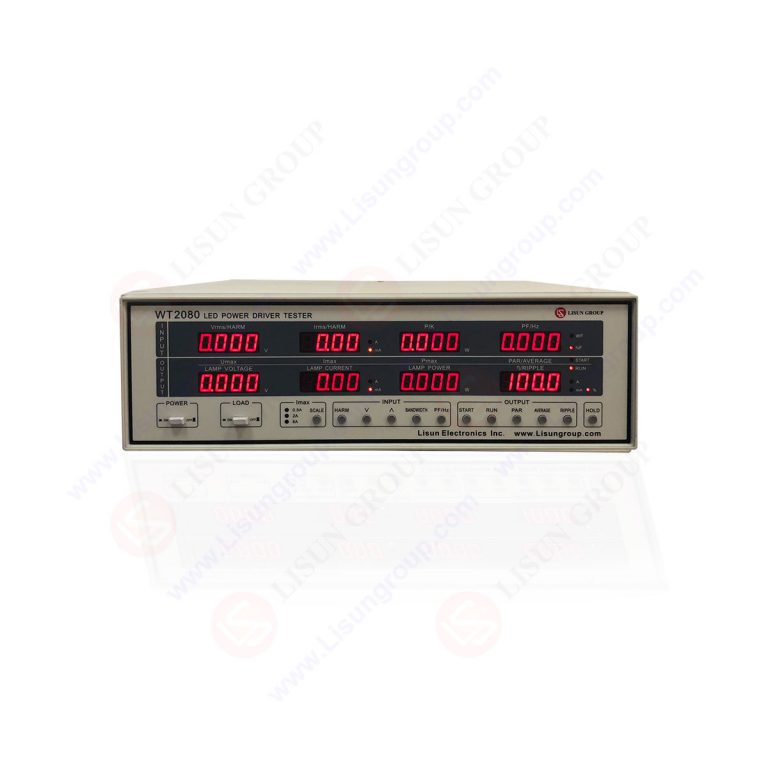

WT2080-OK LED Power Driver Online Testing System

WT2080-OK LED Power Driver Online Testing System is engineered to comply with GB/T 24825-2009 and IEC 62384:2006 standards for LED driver performance requirements. This system is designed for high-speed production line testing of LED drivers, completing comprehensive electrical characterization in 0.1 seconds per unit. The WT2080-OK can test one LED driver at a time directly within the production line environment.

Standards Compliance: IEC 62384:2006 / GB/T 24825-2009 “DC or AC electronic control gear for LED modules – Performance requirements”

Technical Specifications:

1. Input Characteristics Testing (AC)

• Measures input voltage, current, power, power factor, and grid frequency
• Fundamental frequency measurement range: 45Hz to 65Hz
• Narrowband measurement range: 45Hz to 5kHz
• Broadband measurement range: 45Hz to 1MHz
• Voltage measurement range: 0.15V to 300V (CF=1.67)
• Current measurement range: 1.5mA to 2.7A (CF=3)
• Power measurement range: 0.015W to 800W
• Power factor measurement range: 0.000 to 1.000

2. Input Characteristics Testing (DC)

• Measures input voltage, current, and power
• Voltage measurement range: 0.15V to 500V
• Current measurement range: 1.5mA to 8A
• Power measurement range: 0.015W to 4000W

3. Output Characteristics Testing (AC)

• Measures lamp voltage, lamp current, and lamp power
• Lamp voltage measurement range: 0.15V to 300V (CF=3)
• Lamp current measurement range: 1.5mA to 2.7A (CF=3)
• Lamp power measurement range: 0.015W to 800W

4. Output Characteristics Testing (DC)

• Measures output lamp voltage, lamp current, lamp power, and ripple current
• Voltage measurement range: 3V to 500V
• Current measurement range: 1.5mA to 8A
• Power measurement range: 0.015W to 4000W
• Ripple current measurement range: 5mA to 2.5A
