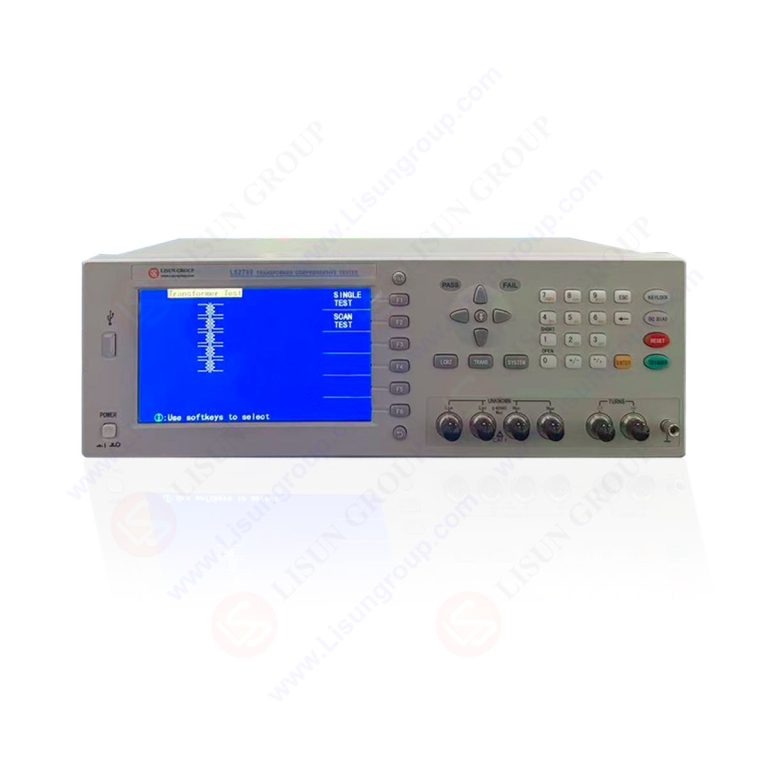

Transformer Comprehensive Test System

Name: Transformer Comprehensive Test System
Brand: LISUN

Product No: LS2789

Leave a Message

Description

The LS2789 Series Transformer Comprehensive Test System features a 7-inch true-color LCD display with 800×480 resolution, enabling comprehensive parameter visualization on a single interface. Multiple operational configurations accommodate diverse user requirements. Transformer scanning interfaces support configurations from 20-pin to 192-pin, facilitating testing of various transformer types and designs.

Specification:
LISUN Model: LS2789 / LS2789A / LS2789B
Test Frequency Range: 20Hz–200kHz / 20Hz–300kHz / 20Hz–500kHz
Frequency Resolution: 1mHz

LCR Test Parameters:
C (Capacitance), L (Inductance), X (Reactance), B (Susceptance), R (Resistance), G (Conductance), D (Dissipation Factor), Q (Quality Factor), ESR (Equivalent Series Resistance), Rp (Parallel Resistance), DCR (Direct Current Resistance), θ (Phase Angle), |Z| (Impedance Magnitude), |Y| (Admittance Magnitude), TURN (Turns Ratio), P (Power)

Transformer-Specific Test Parameters:
Turns Ratio, Number of Turns, Inductance, Capacitance, Leakage Inductance, Phase Angle, Quality Factor (Q), AC Resistance, DC Resistance (DCR), Balance, Pin Short Circuit Detection

Test Ranges:
|Z|, R, X, DCR: 0.01mΩ–99.9999MΩ
|Y|, G, B: 0.00001μS–99.9999S
C: 0.00001pF–9.99999F
L: 0.00001μH–99999.9H
D: 0.00001–9.99999
Q: 0.01–99999.9
Turns-Ratio: 1:0.01–100:1
θ(RAD): -3.14159–3.14159
θ(DEG): -179.999–179.999
Δ%: -999.999%–999.999%

Test Signal Characteristics:
Signal Level: 0.005–2Vrms
Source Output Impedance: 10Ω/CC, 25Ω, 50Ω, 100Ω, 10/100Ω

Performance Specifications:
Test Speed: Fast (75 measurements/second), Medium (20 measurements/second), Slow (6 measurements/second for frequencies >1kHz), Ultra-fast (150 measurements/second)
Internal DC Bias Voltage: -10VDC to +10VDC
Equivalent Circuit Models: Series, Parallel
Range Mode: Automatic, Manual

Comparator Functionality:
Ten-level sorting (BIN0–BIN9), NG (No Good), AUX (Auxiliary), PASS/FAIL determination with LED indicator

Physical Specifications:
Dimensions: 400×132×300mm
Weight: 8.5kg
