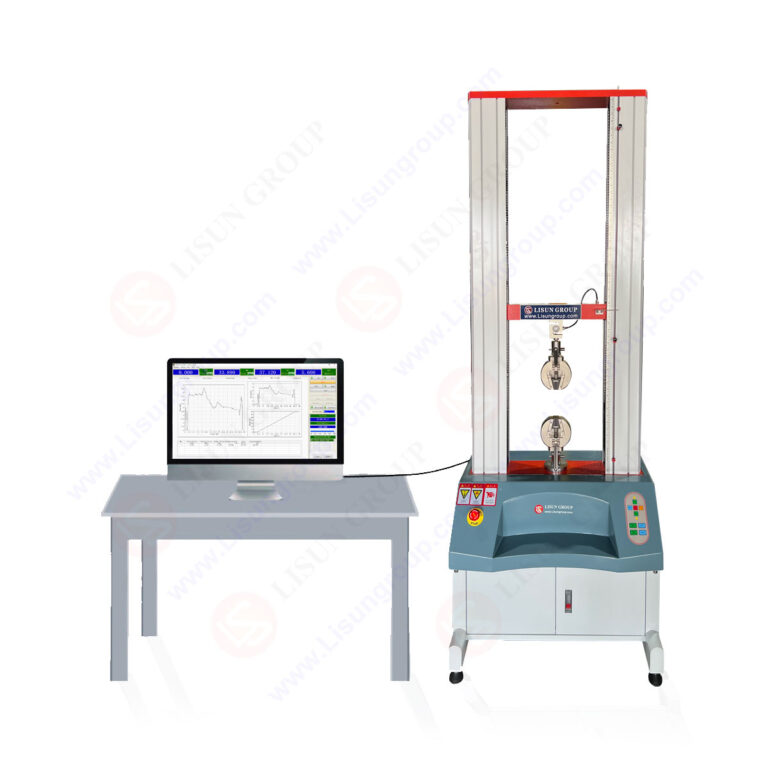

Universal Tensile Testing Machine

The PULL-2000KG Universal Tensile Testing Machine (Universal Testing Machine – UTM) employs computer-controlled operation to conduct mechanical property testing on diverse materials and finished products. The system acquires test data through a high-precision force transducer and features adjustable test rate control, enabling execution of multiple test modes including tensile, compression, peel, shear, tear, and bending evaluations. During testing, the equipment automatically records critical parameters such as force and displacement, generates multiple test curve types, and calculates core mechanical properties including tensile strength, yield strength, and elongation percentage in accordance with applicable standards. Configured with various clamp sizes, the system accommodates test specimens of different materials and geometries. Applications include mechanical property testing of non-metallic materials such as rubber, plastics, wire and cable insulation, textiles, waterproof membranes, and non-woven fabrics, as well as metallic materials including wire, foil, sheet, and rod forms.

Compliance Standards:

• ASTM D638:2022 – Standard Test Method for Tensile Properties of Plastics
• DIN EN ISO 7500-1:2018 – Metallic materials – Verification of static uniaxial testing machines – Part 1: Tensile/compression testing machines
• DIN EN ISO 527-1:2019 – Plastics – Determination of tensile properties – Part 1: General principles
• ISO 1924-2:2021 – Paper and board – Determination of tensile properties – Part 2: Constant rate of elongation method
• ISO 5893:2019 – Rubber and plastics test equipment – Tensile, flexural and compression types – Specification
• GB/T 16491-2022 – Electronic universal testing machines
• GB/T 16825-2024 – Verification of tensile testing machines
• GB/T 1040.1-2021 – Plastics – Determination of tensile properties – Part 1: General principles
• GB/T 4850-2002 – Determination of low-speed unwinding strength of pressure-sensitive adhesive tapes
• GB/T 12914-2023 – Determination of tensile strength of paper and board
• GB/T 17200-2024 – Technical specification for rubber and plastics tensile, compression and bending testing machines

Technical Specifications:

• Force measurement units: N, kN, kgf, lbf (selectable)
• Displacement measurement units: mm, cm, inch (selectable)
• Control methodology: Computer software enables configuration of multiple control parameters including test speed, duration, and displacement limits
