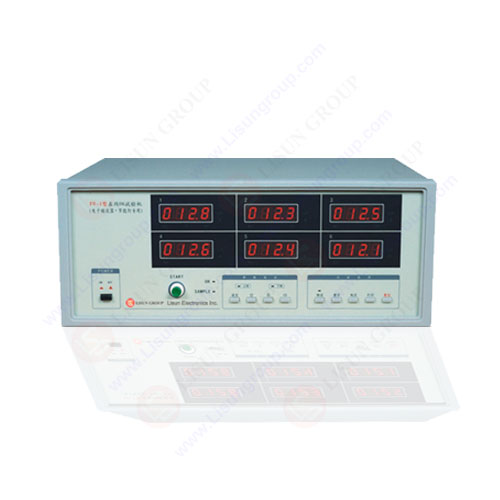

WT-1 Electronic Ballast and CFL Online Production Tester
Product No: WT-1
Leave a Message
Description
WT-1 Electronic Ballast and CFL Online Production Tester specifications:
- Simultaneously tests 6 electronic ballasts or CFL units, optimized for high-volume production line applications
- Measures critical electrical parameters: Vrms (voltage RMS), lrms (current RMS), W (power), PF (power factor)
- Programmable upper and lower limits for lrms, W, and PF with audible/visual alarm activation upon parameter deviation
- Configurable test duration: 0-99.9 seconds with automatic data locking upon test completion
- Measurement ranges:
1) Vrms: 10.0-300.0V
2) lrms: 5-999mA
3) W: 0.1-300.0W
4) PF: 0.0001-1.000 - Measurement accuracy: 0.5%
- Six independent digital display windows for simultaneous parameter monitoring
- Standard interfaces: printer port and communication port (optional configurations available)
Tags: IEC 60929 Electronic Ballast Tester, IEC 62386 CFL Tester, Production Line Electrical Tester, WT-1 Online Tester
