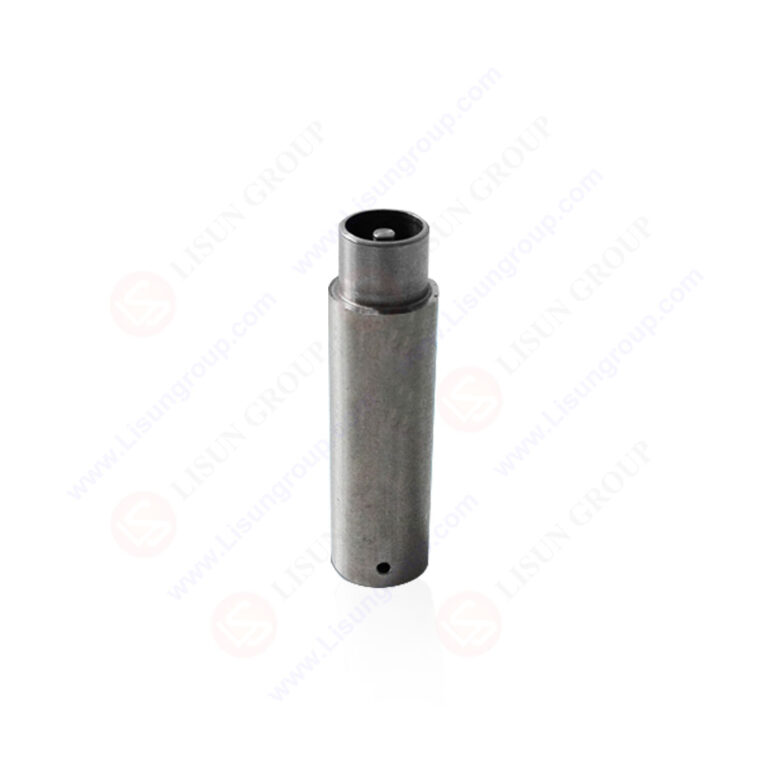

IEC 60065 Figure 9 Mechanical Test Plug for Antenna Coaxial Sockets

IEC 60065 Figure 9: Test Plug for Mechanical Tests on Antenna Coaxial Sockets is a precision-engineered mechanical test device designed specifically for compliance verification of antenna coaxial sockets in accordance with IEC 60065 “Audio, video and similar electronic apparatus – Safety requirements” Figure 9 specifications. The test plug is manufactured entirely from corrosion-resistant stainless steel with all components precision-machined to exacting dimensional tolerances, ensuring repeatable mechanical test results and long-term durability in laboratory environments.

The mating interface of this mechanical test plug conforms precisely to IEC 60169-2 Figure 7 specifications for coaxial connectors, providing standardized mechanical engagement for reliable performance verification of target sockets. This compliance ensures accurate assessment of mechanical integrity, durability, and safety performance during standardized test procedures.

Technical Specifications

• Compliance Standard: IEC 60065 “Audio, video and similar electronic apparatus – Safety requirements” Figure 9
• Mating Interface Standard: IEC 60169-2 Figure 7 for coaxial connectors
• Material Construction: 100% stainless steel (corrosion-resistant)
• Manufacturing Process: Precision machining of all components
• Hole Diameter: 1.5 mm
• Critical Dimensions (with manufacturing tolerances, in millimeters):
• Dimension a: 9.576 (-0.1)
• Dimension b: Minimum 8.05
• Dimension c: 2.438
• Dimension d: Minimum 9.1
• Dimension f: 0.8 ± 0.4
• Dimension g: 40 ± 0.4
• Dimension h: 12 ± 0.4
• Dimension j: 43 ± 0.4
• Dimension k: Minimum 0.3 (radii)
• Primary Function: Mechanical testing of antenna coaxial sockets for compliance verification

Standardized Test Procedure

1. Prepare the antenna coaxial socket for testing by ensuring the mating surface is clean, free of contaminants, and structurally sound.
2. Inspect the mechanical test plug for any signs of wear, deformation, or damage, verifying compliance with specified dimensional and material requirements.
3. Align the test plug with the antenna coaxial socket according to IEC 60065 Figure 9 and IEC 60169-2 Figure 7 assembly specifications.
4. Insert the test plug into the socket following standardized mechanical test protocols (including specified insertion force parameters and insertion/extraction cycle requirements) without exceeding maximum force limits.
5. Execute designated mechanical tests as defined in IEC 60065, including durability assessment, stress resistance evaluation, and retention force measurement.
6. Following test completion, remove the test plug and conduct thorough inspection of the socket for mechanical damage, dimensional deformation, or functional impairment.
7. Evaluate test results against IEC 60065 compliance criteria to determine mechanical performance and safety certification status.
