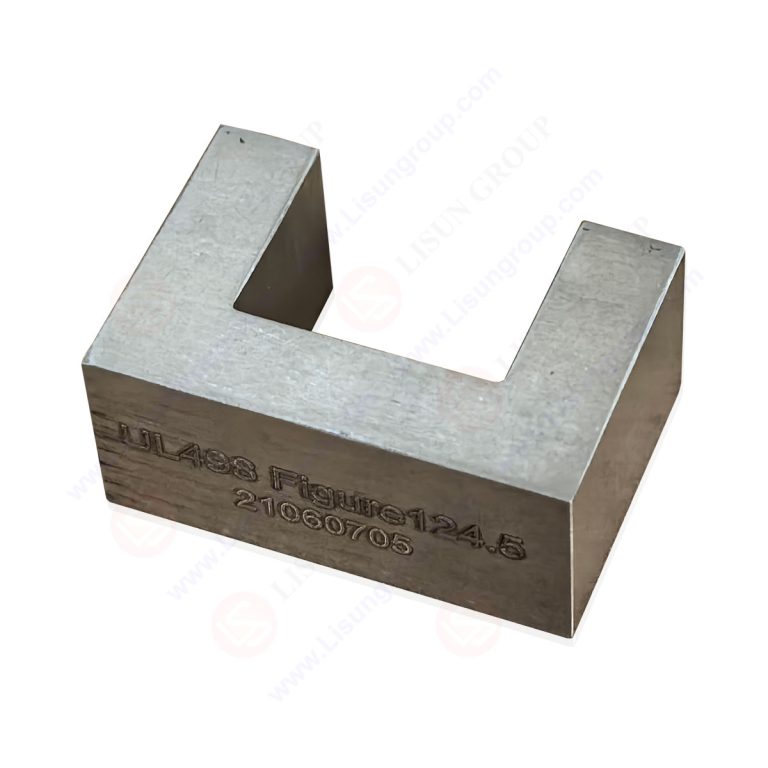

S3638 Bridge Gauge for UL 498 Figure 124.5

This S3638 Bridge Gauge is engineered to verify compliance with UL 498 Figure 124.5 standards, specifically assessing the non-interchangeability and safety performance of plugs and sockets. The gauge features precision structural design and stringent dimensional control to meet rigorous 33ing requirements, providing reliable validation for product qualification in the electrical industry.

Specifications

• Standard: UL 498 Figure 124.5
• Rated Current: Compatible with current ratings specified in UL 498 for plugs and sockets
• Rated Voltage: Aligned with voltage requirements in UL 498 for domestic and similar applications
• Dimensional Tolerance: Manufactured with precise tolerance control to ensure testing accuracy
• Material: High-quality, durable materials selected for stable performance and extended service life under testing conditions
• Non-interchangeability Requirement: Prevents incorrect insertion of non-compliant plugs during testing procedures

Test Procedures

1. Prepare the test environment to ensure compliance with environmental conditions specified in UL 498.
2. Inspect the bridge gauge for any damage, wear, or dimensional deviations prior to testing.
3. Position the plug under test according to standard requirements.
4. Attempt to insert the plug into the bridge gauge in the intended orientation.
5. Observe and record whether the plug inserts smoothly or is prevented from incorrect insertion.
6. Repeat the insertion test multiple times to verify result consistency.
7. Compare test results with UL 498 Figure 124.5 requirements to determine compliance with non-interchangeability standards.
8. Document all test data, observations, and conclusions for reference and audit purposes.

Applications

• Safety testing of plugs and sockets for domestic applications to verify UL 498 compliance
• Quality control and inspection processes in electrical manufacturing facilities
• Third-party laboratory testing for product certification
• Research and development validation of plug and socket designs
• Educational and training applications in 33ing
