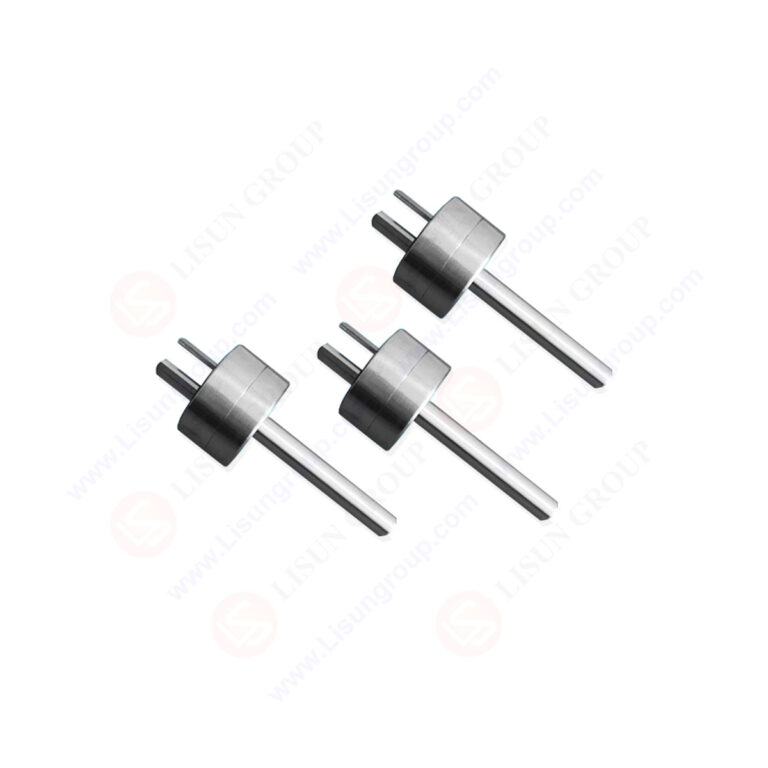

AS/NZS 3112 Figure C1 Three-Pin Test Plug for Verification of Three-Pin Flat-Pin 250 V Maximum Socket-Outlets
Product No: GNGPL-31C1
Leave a Message
Description
AS/NZS 3112 Figure C1 Three-Pin Test Plug for Verification of Three-Pin Flat-Pin 250 V Maximum Socket-Outlets is engineered to validate compliance of three-pin flat-pin socket-outlets (maximum voltage rating: 250 V) with AS/NZS 3112 requirements, specifically assessing structural and dimensional conformance through standardized full insertion tests and finger protection tests during normal insertion. This precision instrument adheres to rigorous standard specifications to ensure measurement reliability and accuracy, serving as an essential tool for quality assurance and regulatory compliance verification in electrical testing laboratories and manufacturing facilities.
Specifications
- Applicable Socket Type: Three-pin flat-pin socket-outlets (maximum voltage: 250 V)
- Compliance Standard: AS/NZS 3112 (Figure C1)
- Material Hardness: Exceeds 50 HRC
- Material Characteristic: Low thermal expansion coefficient
- Dimensional Stability: High stability with precise manufacturing tolerances
- Pin Bevel Angle: 60° ±10′
- Dimensional Parameters (millimetres, applicable to all pins):
- S (10A/15A): 7.05 ±0.03; S (20A): 6.26 ±0.03
- T (10A): 7.07 ±0.03; T (15A): 5.72 ±0.03; T (20A): 7.29 ±0.03
- U (all ratings): 17.46 +0.03
- V (all ratings): 20.64 +0.03
- W* (all ratings): 1.75 ±0.03
- X (10A/15A): 6.50 ±0.03; X (20A): 9.19 ±0.03
- Y (10A): 6.50 ±0.03; Y (15A/20A): 9.19 ±0.03
- Pin Detail Bevel: 1.0 ±0.05 mm
- Surface Roughness: Compliant with AS/NZS 3112 standard requirements
Test Procedures
- Prepare the test environment to ensure compliance with AS/NZS 3112 standard operating conditions for 33ing.
- Conduct pre-test inspection of the test plug to verify absence of physical damage, wear, or dimensional deviations.
- Execute full insertion test by completely inserting the test plug into the socket-outlet under evaluation, verifying alignment with AS/NZS 3112 structural requirements.
- Perform finger protection test during normal insertion, following AS/NZS 3112 Clauses 3.3.4 and 3.8.1 to validate socket-outlet protection against standard test finger intrusion.
- Measure and document dimensional fit between test plug and socket-outlet to confirm compliance with specified tolerances…
