Bending Moment and Mass Imparted Test Device for Semi-Luminaires
Leave a Message

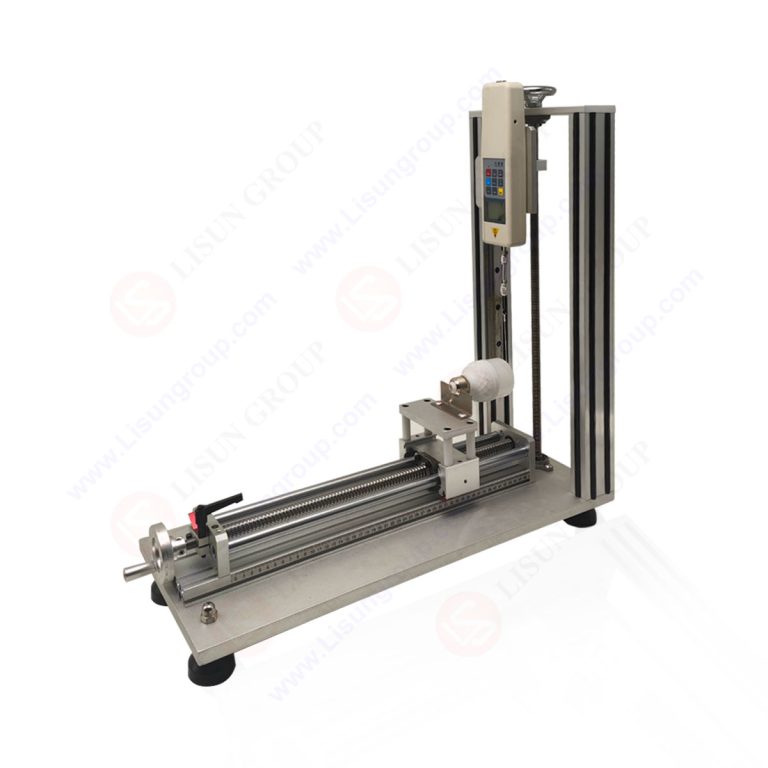

The LS-WJ63 Bending Moment and Mass Imparted Test Device for Semi-Luminaires simulates bending moment loads experienced by semi-luminaires during installation, transportation, and extended operational periods. This apparatus provides precise evaluation of structural integrity, mounting connection reliability, and deformation resistance for tested luminaires, making it suitable for luminaire manufacturers, quality assurance departments, and accredited testing laboratories. The device incorporates an aluminum profile frame, digital thrust gauge, and precision linear guide rails, featuring robust construction, stable operation, and minimal mechanical play to ensure accurate and repeatable test results.
Compliance Standards:
| Standard No. | Standard Name |
| IEC 60968:2015 | Clause 6.2, Figure 3, Table 2 – Self-ballasted fluorescent lamps for general lighting services – Safety requirements |
| IEC 62560:2015 | Clause 6.2, Table 2 – Self-ballasted LED lamps for general lighting services by voltage > 50V – Safety specifications |
| IEC 60598-1:2014 | Clause 4.14.2 – Luminaires – Part 1: General requirements and tests |
| GB/T 16844-2023 | Section 6.2, Figure 3, Table 2 – Self-ballasted fluorescent lamps for general lighting: Safety specifications |
| GB/T 24906-2023 | Section 6.2, Table 2 – Self-ballasted LED lamps for general lighting services above 50V: Safety specifications |
| GB 7000.1-2015 | Section 4.14.2 – Luminaires – Part 1: General requirements and tests |
Technical Specifications:
- Bending moment range: 0.1–10 N·m, accuracy: ±5% (mechanical)
- Digital push-pull force gauge: force range 0–10 N, resolution 0.001 N
- Lifting mechanism: 0–100 mm travel, linear guide rail system
- Manually rotated power arm with pre-measured calibration
- Frame construction: aluminum profile
Reference Standards: IEC 60968:2015 Clause 6.2, IEC 60968:2015 Figure 3, IEC 60968:2015 Table 2
Product Identification: LS-WJ63
