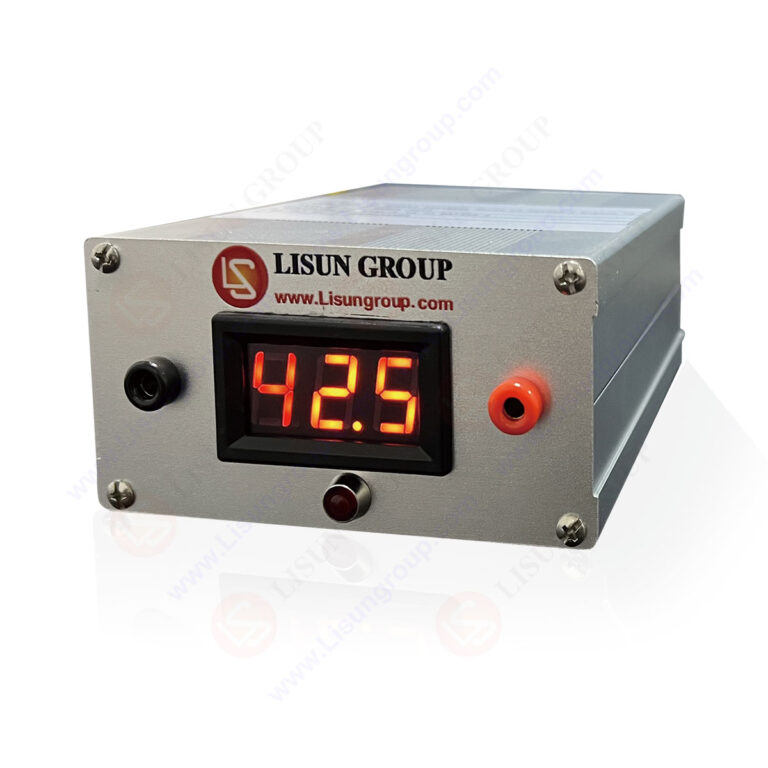

BS 1363-2 Figure 13 Test Apparatus and Circuit for Contact and Non-contact Gauge Applications

This BS 1363-2 Figure 13 Test Apparatus and Circuit for Contact and Non-contact Gauge Applications is engineered to the exact specifications detailed in BS 1363-2 Figure 13. It provides a compliant testing platform for both contact and non-contact gauges to verify the performance and conformity of 13 A socket contacts, ensuring electrical products meet the rigorous safety and technical requirements for household and similar applications as defined by the BS 1363-2 standard.

Specifications

• Full compliance with BS 1363-2 standard requirements, specifically engineered to Figure 13 specifications
• Designed for compatibility with both contact and non-contact gauge measurement systems
• Optimized for testing 13 A socket contacts in switched and unswitched socket-outlets
• Engineered to meet the technical parameters specified in BS 1363-2 “13 A plugs, socket-outlets, adaptors and connection units”
• Calibrated for accurate and repeatable measurement of socket contact performance characteristics

Test Procedures

1. Verify the test apparatus is properly calibrated and configured according to the circuit specifications in BS 1363-2 Figure 13.
2. Prepare the 13 A socket-outlet sample (switched or unswitched) and inspect for any damage or defects that could compromise test validity.
3. Secure the sample on the test apparatus to maintain stability throughout the testing sequence.
4. Connect the appropriate contact or non-contact gauge to the apparatus following standard guidelines.
5. Activate the test circuit and initiate measurement protocols to assess socket contact compliance with BS 1363-2 requirements.
6. Record all test data, including critical performance indicators related to socket contact functionality.
7. Evaluate sample compliance against specified standards based on collected data and document test outcomes.

Applications

• Quality control and compliance testing of 13 A switched and unswitched socket-outlets in manufacturing facilities
• R&D testing for socket contact design optimization
