BS 1363 Plugs and Socket-Outlet Test Gauges

Application: This BS 1363 test gauge set is engineered for dimensional verification and structural inspection of 13A plugs, socket-outlets, and adaptors to ensure compliance with BS 1363 standards. Primary applications include quality control in electrical equipment manufacturing, testing laboratories, and certification bodies.

Features: All gauge dimensions, tolerances, material specifications, hardness (≥50 HRC), and surface roughness conform to BS 1363 requirements. Manufactured from low thermal expansion coefficient materials to ensure dimensional stability and measurement reliability across operational temperature ranges.

Specifications:

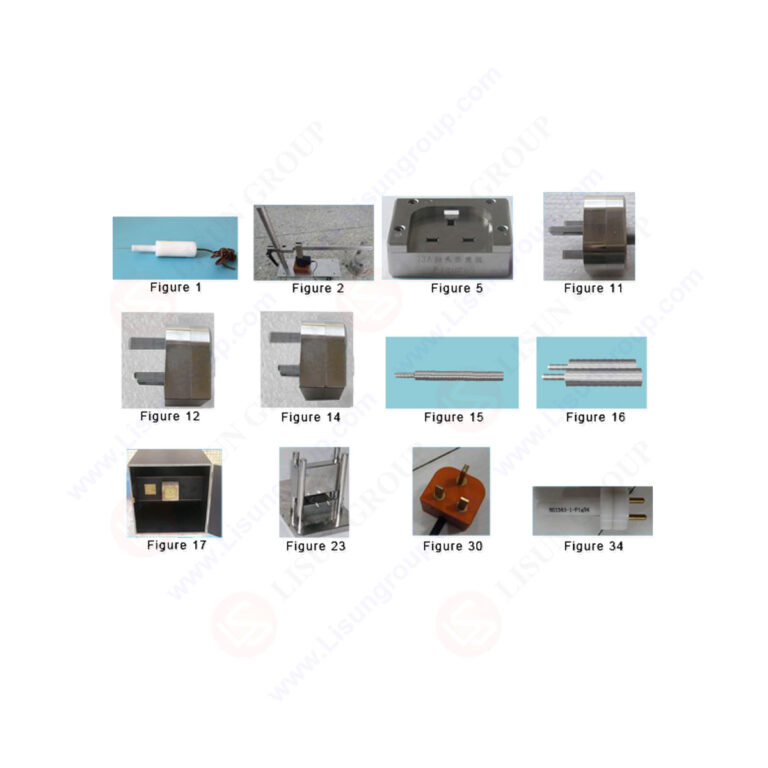

• LISUN Model GNGPL-3601: Test pin per BS 1363-2 Figure 1
• LISUN Model GNGPL-3602: Apparatus for Mechanical Strength Test on Resilient Covers per BS 1363 Figure 2
• LISUN Model GNGPL-3603: Socket contacts gauge per BS 1363-2 Figure 3
• LISUN Model GNGPL-3604: ISODs gauge per BS 1363-1 Figure 4b
• LISUN Model GNGPL-3605: Gauge for Adaptor Pins per BS 1363-3 Figure 5
• LISUN Model GNGPL-3605: BS 1363-1 Figure 5 Gauge for Plug Pins
• LISUN Model GNGPL-3607: Mounting plate gauge per BS 1363-1 Figure 7
• LISUN Model GNGPL-3608: Plug pin gauge per BS 1363-1 Figure 8
• LISUN Model GNGPL-3610: Test Apparatus for Pressure Test At High Temperatures per BS 1363 Figure 10
• LISUN Model GNGPL-3611: Go Gauges for Socket-Outlet per BS 1363-1 Figure 11
• LISUN Model GNGPL-3612: Contact Test Gauge per BS 1363-2 Figure 12
• LISUN Model GNGPL-3614: Non-contact Test Gauge per BS 1363-2 Figure 14
• LISUN Model GNGPL-3615: Turning Moment Gauge per BS 1363-2 Figure 15
• LISUN Model GNGPL-3616: Withdrawal Pull Gauges for Effectiveness of Contact per BS 1363-2 Figure 16
• LISUN Model GNGPL-3617: Test apparatus per BS 1363-1 Figure 17a/17b
• LISUN Model GNGPL-3619: Solid link gauge per BS 1363-1 Figure 19
• LISUN Model GNGPL-3623: Apparatus per BS 1363-2 Figure 23
• LISUN Model GNGPL-3628: Calibrated link gauge per BS 1363-1 Figure 28
• LISUN Model GNGPL-3629: Calibration jig per BS 1363-2 Figure 29
• LISUN Model GNGPL-3630: Test plug per BS 1363-2 Figure 30
• LISUN Model GNGPL-3632: Test Apparatus for Tests on Plug Pins per BS 1363-1 Figure 32
• LISUN Model GNGPL-3633: Apparatus per BS 1363-1 Figure 33
• LISUN Model GNGPL-3634: Test Plug per BS 1363-3 Figure 34
• LISUN Model GNGPL-3635: Adaptors gauge per BS 1363-3 Figure 35

Compliance Standards: BS 1363-1 “13 A plugs, socket-outlets, adaptors and connection units”, BS 1363-2 “13 A switched and unswitched socket-outlets”, BS 1363-3 “Adaptors”
