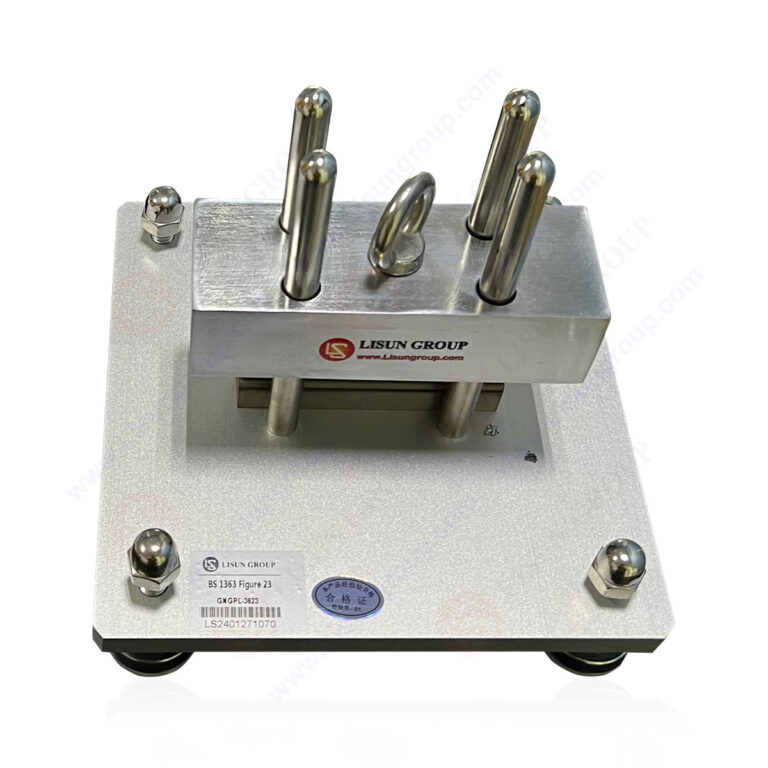

BS1363-2 Figure 23 Pressure Test Apparatus

This BS1363-2 Figure 23 Pressure Test Apparatus is engineered to the exact dimensional and structural specifications outlined in BS 1363-2 Figure 23 for evaluating the pressure resistance performance of 13 A switched and unswitched socket-outlets. The apparatus delivers precise and uniform pressure application to simulate operational stress conditions, ensuring test samples meet the rigorous safety and durability requirements of international electrical standards. With critical dimensions manufactured to strict tolerances, this instrument provides reliable compliance verification for quality control, certification testing, and research and development applications in the electrical accessory industry.

Specifications

• Test standard compliance: BS 1363-2 (13 A switched and unswitched socket-outlets) Figure 23
• Key dimensional parameters: 16.5 ± 0.5 mm (major linear dimension), 15.0 ± 0.5 mm (secondary linear dimension)
• Radius specifications: Dual R2.5 ± 0.5 mm rounded features for compatible contact with test samples
• Test pressure duration range: 50 minutes to 90 minutes (adaptable to standard-specified test cycles)
• Structural design: Engineered for stable pressure application, ensuring uniform force distribution on test samples
• Manufacturing precision: All critical dimensions adhere to strict tolerances to meet BS 1363-2 requirements
• Compatibility: Tailored for 13 A socket-outlets (both switched and unswitched types) covered by the standard

Test Procedures

1. Prepare the test environment by ensuring the apparatus is placed on a flat, stable surface and calibrated to meet dimensional and pressure accuracy requirements.
2. Select the 13 A switched or unswitched socket-outlet to be tested and inspect it for any pre-existing damage or defects that may affect test results.
3. Mount the test sample securely in the designated fixture of the pressure test apparatus, ensuring proper alignment with the apparatus…
