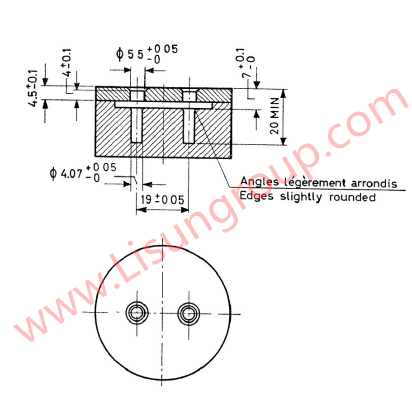

CEE-7 C 13 Interchangeability Gauge for 2.5A 250V Two-Pole Plugs

This CEE-7 C 13 Interchangeability Gauge for 2.5A 250V Two-Pole Plugs is a precision-engineered verification tool designed in strict accordance with the IECEE CEE-7 “Specification for plugs and socket-outlets for domestic and similar purposes” C 13 standard. It is specifically engineered for validating the interchangeability of 2.5A 250V two-pole plugs, facilitating smooth insertion without excessive force to ensure compliance with dimensional and functional requirements, thereby supporting quality assurance and performance validation in plug manufacturing and application environments.

Specifications:

• Complies with IECEE CEE-7 “Specification for plugs and socket-outlets for domestic and similar purposes” C 13 standard
• Designed for 2.5A 250V two-pole plugs
• Verifies interchangeability of target plugs
• Features radiused edges for optimized usability
• Allows plug insertion without undue force, ensuring engagement face contacts gauge surface
• Maintains dimensional compliance with specified metric (mm) requirements

Test Procedures:

1. Prepare the 2.5A 250V two-pole plug requiring interchangeability verification.
2. Position the gauge on a flat, stable surface to maintain measurement accuracy during testing.
3. Align the plug with the gauge’s insertion interface, ensuring proper orientation without misalignment.
4. Insert the plug into the gauge with minimal force throughout the procedure.
5. Verify that the engagement face of the plug makes complete contact with the gauge surface.
6. Confirm that insertion proceeds smoothly and meets standard requirements; forced insertion or incomplete contact indicates failure of interchangeability verification.

Applications:

• Dimensional and interchangeability verification during 2.5A 250V two-pole plug production
• Quality control inspections in manufacturing facilities to ensure batch consistency
• Compliance testing for 2.5A 250V two-pole plugs to meet… (truncated)
