CEE 7 C1 Standard-Compliant Gauge for 10/16A 250V Two-Pole Socket-Outlets

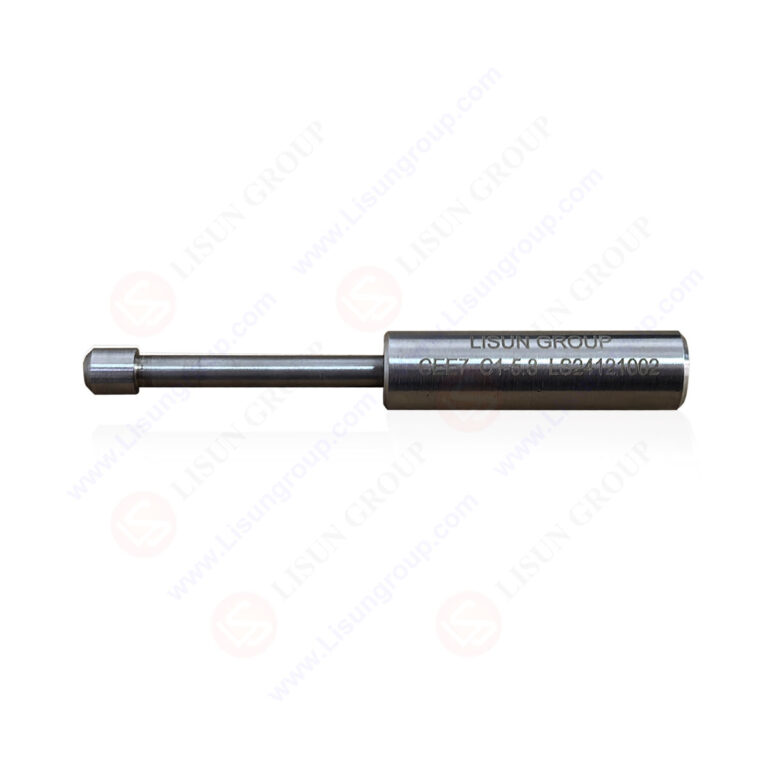

Gauges for 10/16A 250V Two-pole Socket-outlets According to CEE 7 C1 is specifically designed to verify whether the structure and size of two-pole sockets meet the requirements of the IECEE CEE-7 standard (CEE7/7). It features stable and reliable performance, with its dimensions, tolerances, material properties, hardness, and surface roughness all compliant with relevant standard specifications, ensuring accurate and consistent testing results for socket products.

Specifications:

• Rated current compatibility: 10/16A
• Rated voltage compatibility: 250V
• Applicable standard: IECEE CEE-7 “Specification for plugs and socket-outlets for domestic and similar purpose”
• Material hardness: Minimum 50HRC
• Material characteristic: Small thermal expansion coefficient
• Dimension a (ceramic material covers): 6.0+0.01 mm
• Dimension a (other material covers): 5.8+0.01 mm
• Key requirement: The gauge shall not be insertable into entry holes without undue force

Test Procedures:

1. Confirm that the test environment is clean and free from debris that may affect the testing process.
2. Verify the gauge’s own dimensions, hardness, and surface condition to ensure compliance with standard requirements before testing.
3. Align the gauge with the entry holes of the two-pole socket to be tested.
4. Attempt to insert the gauge into the entry holes without applying undue force.
5. Check if the gauge can be inserted; if insertion is possible without undue force, the socket fails the test.
6. Record the test results based on whether the insertion requirement is met.

Applications:

• Quality inspection of two-pole socket products in the electronics industry.
• Compliance testing for socket manufacturers in the electrical appliance sector.
• R&D testing during the design and development phase of plugs and sockets.
• Quality control and verification processes in industries producing similar electrical connection products.
• Conformity assessment to meet IECEE CEE-7 standard requirements for domestic … (truncated)
