CEE 7 C16 Dimensional Verification Gauges for 10/16A 250V Two-Pole Socket-Outlets with Side Earthing-Contacts

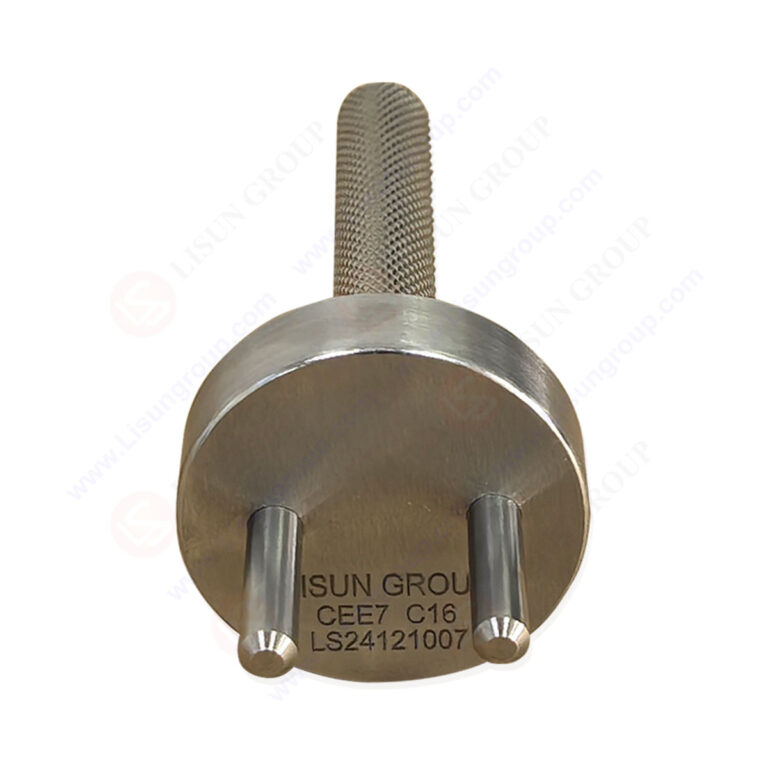

CEE 7 C16 Dimensional Verification Gauges for 10/16A 250V Two-Pole Socket-Outlets with Side Earthing-Contacts are engineered for precise structural and dimensional compliance verification of 10/16A 250V two-pole socket-outlets with side earthing-contacts against CEE7 standards. These gauges deliver stable and reliable performance through precise dimensional accuracy, stringent tolerance control, appropriate material hardness specifications, and low thermal expansion coefficient materials, ensuring consistent and accurate testing results for electrical components.

Technical Specifications

• Rated current compatibility: 10/16A
• Rated voltage compatibility: 250V
• Applicable socket type: Two-pole with side earthing-contacts
• Compliance standard: CEE7
• Material hardness: Above 50HRC
• Material property: Low thermal expansion coefficient
• Dimensional feature: Stable and reliable with strict tolerance control
• Surface finish: Meets standard requirements for surface roughness

Standardized Test Procedures

1. Verify that both the test gauge and the socket-outlet under test are clean and free from debris or damage that could compromise test accuracy.
2. Align the gauge with the socket-outlet according to CEE7 standard structural requirements.
3. Attempt to insert the gauge into the socket-outlet in the correct orientation.
4. Assess whether the gauge inserts properly without excessive force, verifying dimensional matching of the socket’s contact openings.
5. Inspect the fit between the gauge and the socket’s earthing contacts to confirm structural compliance.
6. Document whether the socket-outlet meets CEE7 standards based on gauge insertion performance and fit assessment.
7. Remove the gauge carefully after testing and store in appropriate environmental conditions to maintain dimensional precision.

Primary Applications

• Quality inspection of 10/16A 250V two-pole socket-outlets with side earthing-contacts in electronics manufacturing
• Compliance testing of electrical appliances equipped with matching socket-outlets
• Dimensional and structural verification of socket-outlet components during production and quality control processes
