CEE 7 Gauge C 4 for Two-pole Plugs with Side Earthing-contacts

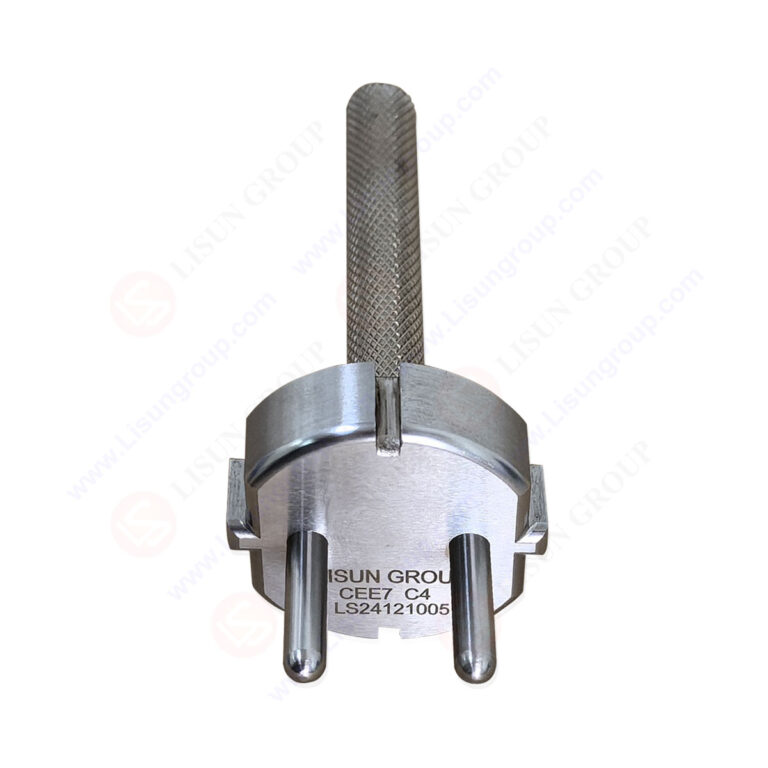

CEE 7 Gauge C 4 for Two-pole Plugs with Side Earthing-contacts is designed to verify the structural and dimensional compliance of 10/16A 250V two-pole socket-outlets with side earthing-contacts, adhering strictly to CEE7 standards. It is precision-engineered to meet stringent requirements for dimensions, tolerances, material quality, hardness, and surface roughness. With material hardness exceeding 50HRC and a low thermal expansion coefficient, the gauge ensures stable and reliable dimensional accuracy, allowing two-pole plugs with side earthing-contacts to be fully inserted into the tested socket-outlets without undue force, in accordance with standard specifications.

• Rated current compatibility: 10/16A
• Rated voltage compatibility: 250V
• Applicable product type: Two-pole socket-outlets with side earthing-contacts
• Compliance standard: CEE7
• Core function: Acceptance testing of two-pole plugs with side earthing-contacts
• Material hardness: Above 50HRC
• Material property: Low thermal expansion coefficient
• Dimensional feature: Stable and reliable with strict tolerance control
• Surface finish: Meets standard requirements for surface roughness
• Key performance requirement: Gauge pins can be fully inserted into the socket-outlet without undue force
• Corresponding standard figure: Fig.4
• Key dimensional parameters (mm): ϕ379±0.03, 32.9±0.03, 2.8±0.03, R=25±0.05, 19±0.05

Test Procedures:

1. Prepare the test gauge and the 10/16A 250V two-pole socket-outlet with side earthing-contacts, ensuring both are clean, free from debris, damage, or deformation that may affect test validity.
2. Confirm the gauge’s dimensions, surface condition, and hardness comply with CEE7 standard requirements prior to testing.
3. Align the gauge’s pins with the contact openings and side earthing contacts of the socket-outlet as specified in Fig.4 of the standard.
4. Attempt to insert the gauge’s pins fully into the socket-outlet, applying only gentle force.
