CEE 7 Standard Plug and Socket-Outlet Test Gauges

Application: This plug and socket-outlet test gauge set is engineered for dimensional verification and structural inspection of plugs and socket-outlets to ensure compliance with CEE 7 standards (specifically CEE 7/7) as referenced in IEC 60884-1. Primary application sectors include electrical component manufacturing, consumer electronics, appliance production, and electrical accessory quality control laboratories.

Features: All gauge dimensions, tolerances, material specifications, hardness values, and surface roughness parameters conform to IEC 60884-1 standard requirements. Material hardness exceeds 50 HRC for enhanced durability. Low thermal expansion coefficient ensures dimensional stability and measurement reliability across operational temperature ranges.

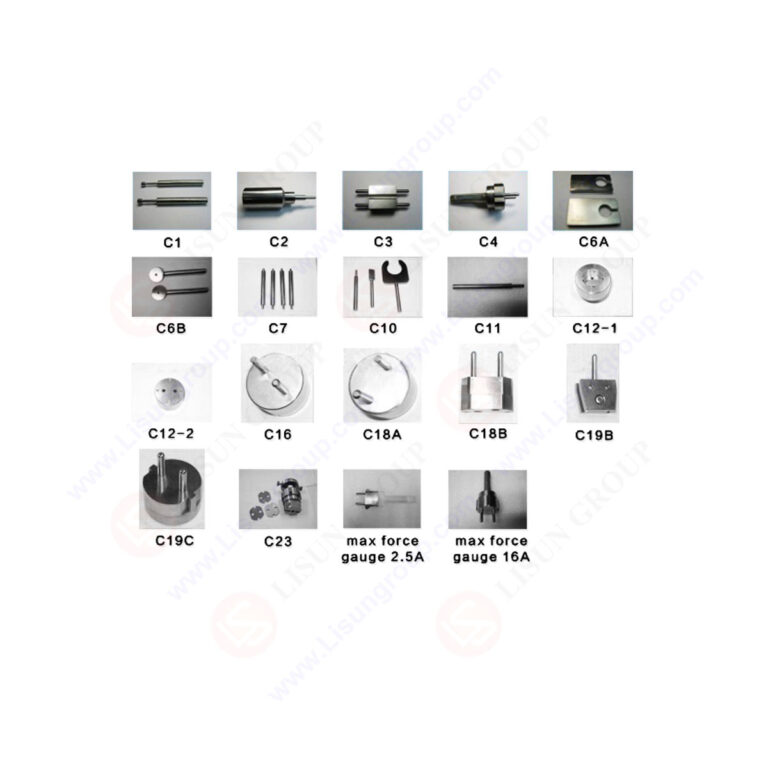

CEE 7 Socket-Outlets and Plug Test Gauges – LISUN Model Specifications

• GNGPL-57C1: 10/16A 250V two-pole socket-outlets gauge C1 of CEE 7 for verification of entry hole dimensions for plug pins
• GNGPL-57C2: 10/16A 250V two-pole socket-outlets and two-pole plugs with pin-type earthing-contact gauge C2 of CEE 7 for minimum opening verification of contact tubes
• GNGPL-57C3: 10/16A 250V two-pole socket-outlets gauge C3 of CEE 7 for acceptance testing of two-pole plugs
• GNGPL-57C4: 10/16A 250V two-pole socket-outlets with side earthing-contacts gauge C4 of CEE 7 for acceptance testing of two-pole plugs with side earthing contacts
• GNGPL-57C6: 10/16A 250V two-pole fixed socket-outlets gauge C6 of CEE 7 for verification of fixing holes or slots
• GNGPL-57C7: 10/16A 250V two-pole socket-outlets gauge C7 of CEE 7 for distance verification to point of first contact
• GNGPL-57C8: 10/16A 250V two-pole socket-outlets gauge C8 of CEE 7 for wiring channel verification
• GNGPL-57C9: 2.5A 250V and 10/16A 250V two-pole plugs and 10/16A 250V two-pole socket-outlets with pin-type earthing-contact gauge C9 of CEE 7 for pin diameter verification
• GNGPL-57C10: 10/16A 250V two-pole plugs gauge C10 of CEE 7 for pin spacing verification
• GNGPL-57C11: 10/16A 250V two-pole socket-outlets and two-pole plugs with pin-type earthing-contact gauge C11 of CEE 7 for maximum opening verification of contact tubes
• GNGPL-57C12: 10/16A 250V two-pole plugs with side earthing-contacts gauge C12 of CEE 7 for interchangeability verification
• GNGPL-57C13: 2.5A 250V two-pole plugs for Class II appliances gauge C13 for interchangeability verification
