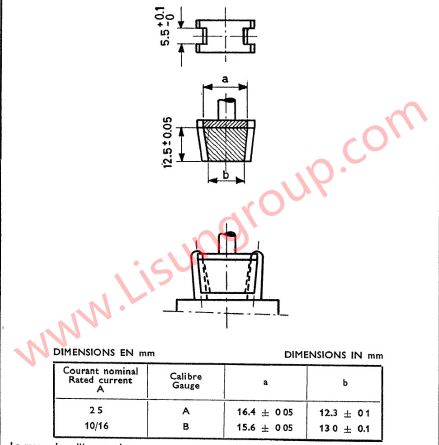

CEE7 C19A and C19B Single-Pole Insertion Prevention Test Gauges

This CEE7 C19A and C19B Single-Pole Insertion Prevention Test Gauges set comprises two precision-engineered variants designed for compliance verification with IECEE CEE-7 standard requirements. The gauges are manufactured to validate the impossibility of single-pole insertion into socket-outlets, a critical safety mechanism that prevents user access to live electrical components through partial or incorrect plug engagement.

By simulating standardized single-pole insertion attempts, this gauge set ensures socket-outlets meet the rigorous safety criteria specified in CEE 7, thereby mitigating electric shock hazards and ensuring compliance with regional electrical safety standards. The verification process is essential for manufacturers, testing laboratories, and quality control departments to certify product safety and regulatory adherence.

Specifications:

• Full compliance with IECEE CEE-7 standard requirements for single-pole insertion prevention testing
• Two distinct gauge variants (C19A and C19B) for comprehensive coverage of CEE 7-compliant socket-outlet configurations
• Manufactured from high-precision, durable materials to maintain dimensional stability and ensure repeatable test results
• Engineered with smooth, burr-free surfaces to prevent damage to socket-outlet contacts during testing procedures
• Compatible with CEE 7-compliant domestic and similar-purpose socket-outlets
• Calibrated to replicate the exact size and shape of standard plug pins for authentic single-pole insertion simulation

Test Procedures:

• Inspect both gauge variants (C19A and C19B) for any damage, deformation, or dimensional deviations, confirming compliance with CEE 7 specifications.
• Prepare the socket-outlet sample, ensuring it is clean, free from burrs, loose components, or structural defects that may affect test results.
• Secure the socket-outlet in a stable, flat fixture to maintain consistent positioning during testing.
• For Gauge C19A: Align the gauge with one of the socket-outlet’s live pin openings, attempting to insert it as a single pole (no other pins engaged) with gentle, controlled force.
• Observe…
