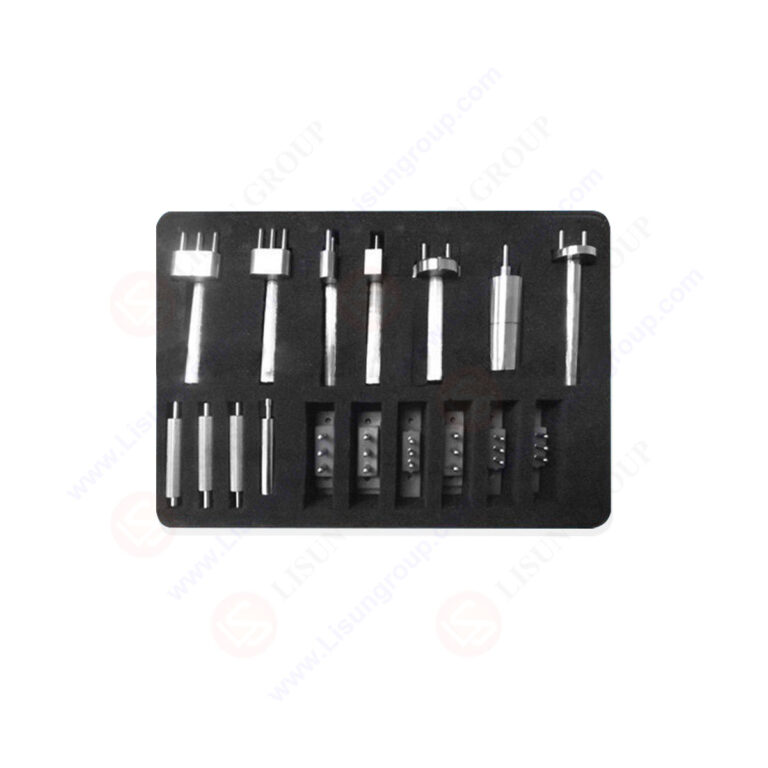

CEI 23-50 Compliant Plug and Socket-Outlet Dimensional Gauges

LISUN GNGPL-CEI23 Italy Standard Plug and Socket Outlets Gauges is primarily utilized for the verification and inspection of plug and socket-outlet structural geometry and dimensional compliance with the CEI 23-50 standard. The LISUN GNGPL-CEI23 is applicable within industries including electronics, electrical appliances, plug and socket manufacturing, and related sectors. Key features include: Gauge dimensions, tolerances, material composition, hardness, and surface roughness conform to standard specifications; Material hardness exceeds 50 HRC; Material exhibits a low coefficient of thermal expansion, ensuring dimensional stability and measurement reliability. Compliance Standard: CEI 23-50 “Spine e prese per usi domestici e similari – Parte 1: Prescrizioni generali”. Specification: The LISUN GNGPL-CEI23 kit comprises the following complete set of gauges: LISUN Model Standard No. Specification GNGPL-235C1 CEI-23-50-C1 Gauges C1 of 10A 250V & 16A 250V GNGPL-235C2 CEI-23-50-C2 Gauges C2A & C2B(10A & 16A) GNGPL-235C3 CEI-23-50-C3 Gauges C3 GNGPL-235C4 CEI-23-50-C4 Gauges C4 GNGPL-235C5 CEI-23-50-C5 Gauges C5A & C5B GNGPL-235C6 CEI-23-50-C6 Gauges C6 GNGPL-235C7 CEI-23-50-C7 Gauges C7 GNGPL-235C8 CEI-23-50-C8 Gauges C8 GNGPL-235C9 CEI-23-50-C9 Gauges C9 GNGPL-235C10 CEI-23-50-C10 Gauges C10 GNGPL-235C11 CEI-23-50-C11 Gauges C11 GNGPL-235C12 CEI-23-50-C12 Gauges C12 GNGPL-235C13A CEI 23-50 V4 Figure 13a GNGPL-235C13B CEI 23-50 V4 Figure 13b GNGPL-235C14A CEI 23-50 V4 Figure 14a GNGPL-235C14B CEI 23-50 V4 Figure 14b GNGPL-235C103A CEI 23-50 V4 Figure 103a GNGPL-235C103B CEI 23-50 V4 Figure 103b GNGPL-235C104A CEI 23-50 V4 Figure 104a GNGPL-235C104B CEI 23-50 V4 Figure 104b Tags： CEE 7 , GNGPL-CEI23
