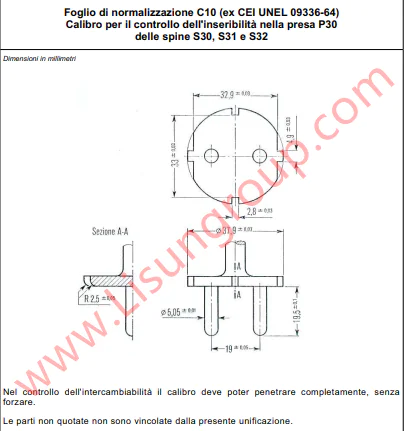

CEI 23-50 Normalization Sheet C10 Insertability Gauge for S30/S31/S32 Plugs and P30 Sockets

CEI 23-50 Normalization Sheet C10 Insertability Gauge for S30/S31/S32 Plugs and P30 Sockets is manufactured in strict compliance with CEI 23-50 Normalization Sheet C10 specifications and is engineered to verify the mechanical insertability of S30, S31, and S32 plug types into corresponding P30 sockets. This precision testing instrument serves as an essential quality control tool for validating proper mating between specified plug configurations and P30 socket interfaces, which is critical for ensuring reliable electrical connections and mitigating safety risks associated with poor insertability. The gauge is utilized by manufacturers, accredited testing laboratories, and regulatory compliance departments involved in the production and verification of household and similar electrical plugs and sockets.

Specifications

• Complies with CEI 23-50 Normalization Sheet C10 standard requirements
• Specifically designed for insertability verification of S30, S31, and S32 plugs into P30 sockets
• Incorporates high-precision dimensional tolerances to ensure accurate and repeatable insertability testing
• Constructed from durable materials with stable mechanical properties to withstand repeated testing cycles without deformation
• Meets general technical requirements for plug and socket testing gauges as specified in relevant electrical industry standards

Test Procedures

1. Prepare the CEI 23-50 Normalization Sheet C10 gauge, the S30/S31/S32 plugs under test, and P30 sockets. Ensure all components are clean, free from deformation, corrosion, or other defects that could compromise test validity.
2. Securely mount the P30 socket in a fixed position to prevent movement during the testing sequence.
3. Select the appropriate plug type, align it with the P30 socket in the standard operational orientation, and utilize the gauge to simulate the insertion process with controlled force application.
4. Observe and document whether the plug inserts smoothly into the P30 socket within the specified force parameters. Evaluate insertability compliance based on standard acceptance criteria.
