CEI 23-50 V4 Figure 103b Thermal Test Gauge

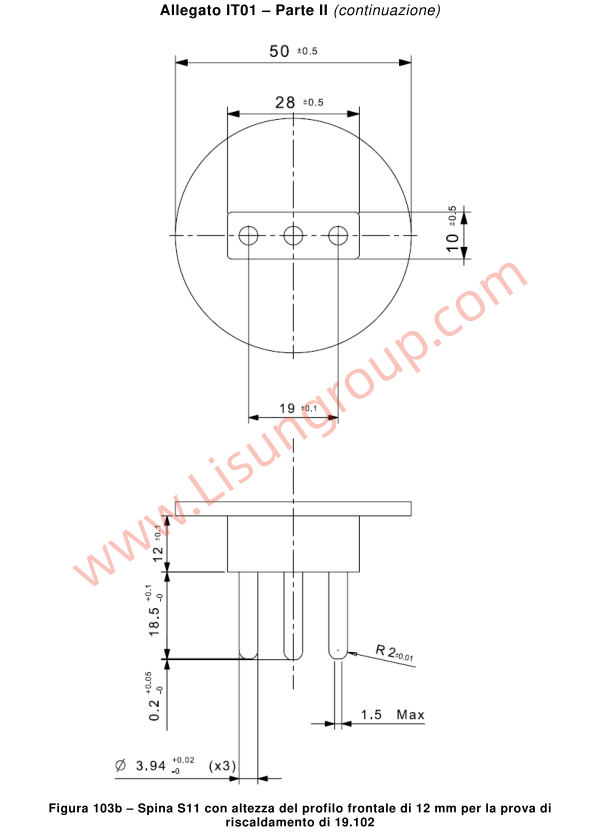

This CEI 23-50 V4 Figure 103b Thermal Test Gauge is a precision testing instrument compliant with the CEI 23-50:2007 Standard, specifically designed as a supplementary figure for comprehensive plug and socket thermal evaluation. Engineered with a 12 mm front profile height, this gauge is optimized for thermal testing protocols as defined in the standard, providing exact dimensional control and repeatable performance for accurate assessment of electrical components. Manufactured to stringent tolerances and design specifications, it serves as a dependable tool for verifying thermal resistance characteristics and safety compliance of plugs and sockets.

Specifications

• Front profile height: 12 mm
• Dimension with tolerance: 50 +0.5 mm
• Dimension with tolerance: 28 ±0.5 mm

Test Procedures

1. Establish the test environment to satisfy ambient and operational conditions specified in the CEI 23-50:2007 Standard.
2. Securely mount the gauge on the test fixture, ensuring precise alignment with the plug or socket under evaluation according to standard guidelines.
3. Initiate thermal testing procedures in compliance with section 19.102 of the CEI 23-50:2007 Standard, configuring appropriate test parameters.
4. Maintain continuous monitoring of the test configuration to ensure gauge positioning integrity and stable test conditions throughout the procedure.
5. Document all relevant thermal performance data, including temperature variations and component responses, at designated intervals.
6. Post-test, inspect the gauge for dimensional stability and structural integrity to confirm absence of deformation or wear.
7. Compile and analyze test results to determine compliance with thermal resistance requirements of the CEI 23-50:2007 Standard.

Applications

• Thermal resistance testing of S11 type plugs and sockets per CEI 23-50:2007 Standard requirements
• Quality assurance and compliance verification for manufacturers producing electrical plugs and sockets for markets adhering to CEI specifications
