CEI 23-50 V4 Figure 104a Gauge

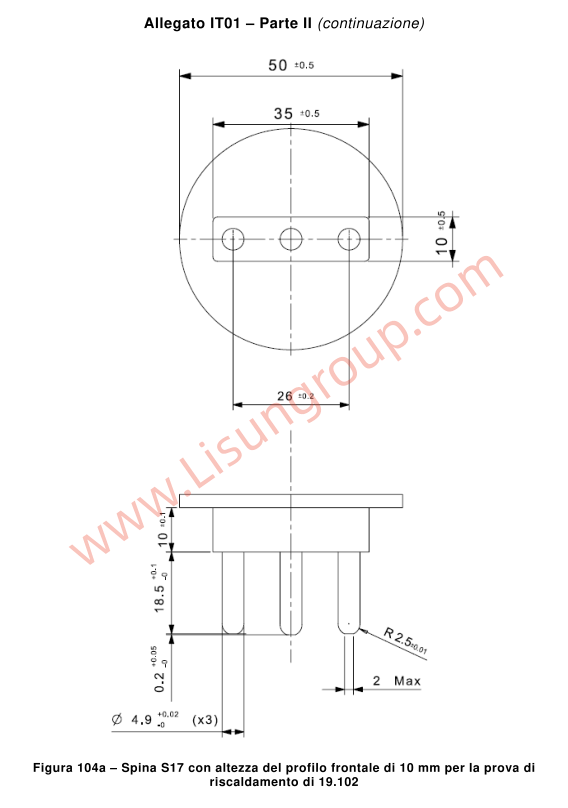

This CEI 23-50 V4 Figure 104a Gauge is a precision-engineered testing instrument compliant with the CEI 23-50:2007 Standard, specifically designed as a supplementary component for thermal testing applications. With a front profile height of 10 mm, it is engineered to evaluate the thermal performance of specific plug types, adhering to the rigorous requirements outlined in section 19.102 of the standard. Manufactured with strict attention to dimensional accuracy and structural reliability, it provides consistent and accurate results for quality verification and compliance testing of electrical components.

Specifications:

• Front profile height: 10 mm
• Dimension with tolerance: 50 +0.5
• Dimension with tolerance: 35 +0.5

Test Procedures:

1. Ensure the test environment complies with the ambient and operational conditions specified in the CEI 23-50:2007 Standard.
2. Position the gauge accurately with the plug under test, ensuring full and proper contact with the relevant surfaces as required.
3. Initiate the thermal testing process following the protocols detailed in section 19.102 of the CEI 23-50:2007 Standard.
4. Monitor the test duration and maintain stable test conditions to ensure the validity of the thermal performance data.
5. Record key metrics, including temperature changes and the plug’s response to thermal stress, at predefined intervals.
6. Verify that the gauge retains its dimensional accuracy and structural integrity throughout the entire testing process.
7. Conclude the test once the specified criteria are met, and analyze the results to assess the plug’s compliance with the standard.

Applications:

• Thermal performance testing of specific plug types in line with CEI 23-50:2007 Standard requirements.
• Quality control and compliance verification for manufacturers producing electrical plugs and sockets.
• Laboratory-based evaluation of electrical components to ensure they meet safety and thermal resistance standards.
• Calibration support for testing equipment used in … (truncated)
