CEI 23-50 V4 Figure C14a Compliance Gauge

The CEI 23-50 V4 Figure C14a Compliance Gauge is engineered to verify electrical continuity and retention capabilities in accordance with CEI 23-50 V4 paragraph 19.101 requirements for P40 socket applications. This precision instrument provides two calibrated versions corresponding to 10 mm and 12 mm front profile heights, delivering repeatable measurement results to ensure compliance with relevant electrical safety standards.

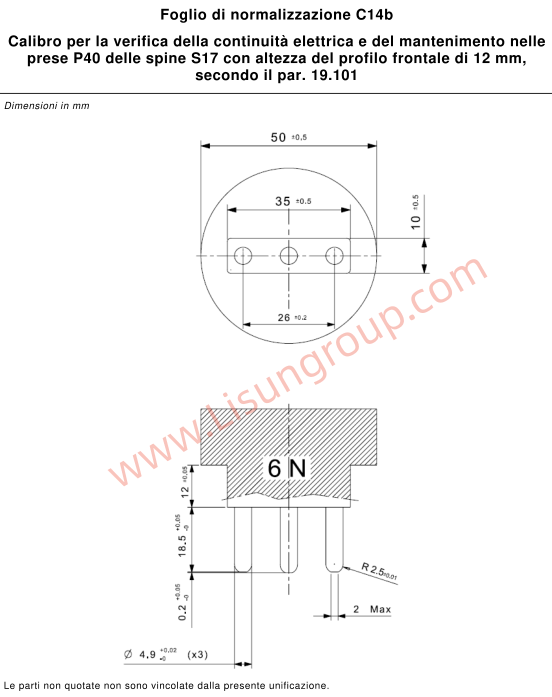

Specifications:
• Overall dimension: 50 ±0.5 mm
• Dimension: 35 ±0.5 mm
• Dimension: 26 ±0.2 mm
• Radius: R 2.5 ±0.01 mm
• Maximum dimension: 2 mm
• Diameter: ø4.9 +0.02 mm
• Feature: 3 sets of ø4.9 +0.02 mm diameter components
• Front profile height options: 10 mm and 12 mm

Test Procedures:
• Prepare the testing environment by ensuring the gauge and P40 socket are free of contaminants or defects that could compromise measurement accuracy.
• Select the appropriate gauge version based on the 10 mm or 12 mm front profile height specification of the plug under evaluation.
• Align the gauge with the P40 socket interface and insert it smoothly into the designated test position.
• Perform electrical continuity verification using calibrated measurement equipment to confirm proper electrical connection integrity.
• Assess retention performance by evaluating the mechanical engagement between the gauge and socket retention mechanisms.
• Document all test parameters and results to determine compliance with specified continuity and retention requirements.
• Remove the gauge from the socket interface following testing completion to prevent damage to test components.

Applications:
• Factory quality control inspections for P40 sockets to verify compliance with CEI 23-50 V4 par. 19.101 standards during production.
