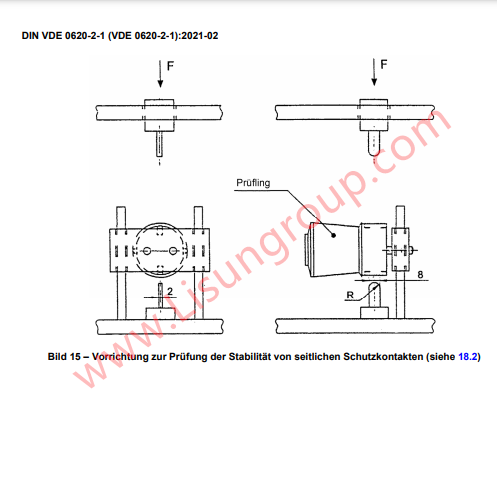

DIN VDE 0620-1 Figure 15 Lateral Protective Contact Stability Testing Device

This DIN VDE 0620-1 Figure 15 Lateral Protective Contact Stability Testing Device is engineered to verify the mechanical stability of lateral protective contacts in fixed sockets, ensuring strict compliance with the DIN VDE 0620 series standards. The device performs critical safety validation for household and similar electrical installations, where stable lateral protective contacts are essential for maintaining effective grounding continuity and protection against electrical shock hazards during plug insertion, operation, and withdrawal cycles.

Specifications:

• Compliance: DIN VDE 0620-1 “Stecker und Steckdosen für den Hausgebrauch und ähnliche Anwendungen – Teil 1: Allgemeine Anforderungen an ortsfeste Steckdosen” Figure 15
• Conformance: DIN VDE 0620-2-1 (VDE 0620-2-1):2021-02 standard requirements
• Test force specification: 1 N (as defined by standard test parameters)
• Application scope: Dedicated testing of lateral protective contacts in fixed socket configurations

Test Procedures:

1. Prepare the fixed socket test specimen in normal, unused condition with intact lateral protective contacts.
2. Secure the socket specimen firmly on a stable test platform to eliminate movement during testing procedures.
3. Position the testing device in precise alignment with the socket’s lateral protective contacts, following standard-specified orientation and positioning requirements.
4. Apply a calibrated 1 N test force to the lateral protective contacts through the device mechanism, maintaining force application for the duration specified in the standard.
5. Monitor and measure displacement or deformation of lateral protective contacts during force application.
6. Following test force removal, verify that lateral protective contacts return to original position without permanent deformation or structural damage.
7. Document test data and compare against standard stability requirements to determine compliance status.

Applications:

• Stability testing of lateral protective contacts in fixed household soc… (truncated)
