DIN-VDE 0620-1 Gauge 1 Size of Plug Pin Insertion Openings

Name: DIN-VDE 0620-1 Gauge 1 Size of Plug Pin Insertion Openings
Brand: LISUN

Product No: GNGPL-6201

Leave a Message

Description

This DIN-VDE 0620-1 Gauge 1 Size of Plug Pin Insertion Openings is engineered to meet the requirements of Gauge 1 in the DIN VDE 0620-1 standard (“Plugs and Sockets for Household and Similar Applications – Part 1: General Requirements for Fixed Sockets”). It is dedicated to testing the size of plug pin insertion openings in sockets, a critical parameter that ensures proper mating between plugs and sockets while preventing safety hazards such as loose connections or incorrect pin insertion. The gauge is available in three variants (1a, 1b, 1c) to accommodate different socket materials and additional DIN standards, ensuring precise and compliant testing across various application scenarios. It serves as an essential tool for manufacturers, testing laboratories, and quality assurance teams focused on meeting the strict safety and dimensional standards of DIN VDE 0620-1 for household and similar sockets.

Specifications:

Complies with DIN VDE 0620-1 standard, specifically designed for Gauge 1 (“Gauge for the size of plug pin insertion openings”) as referenced in clause 9.1 of the standard
Available in three specialized variants to match different testing needs:

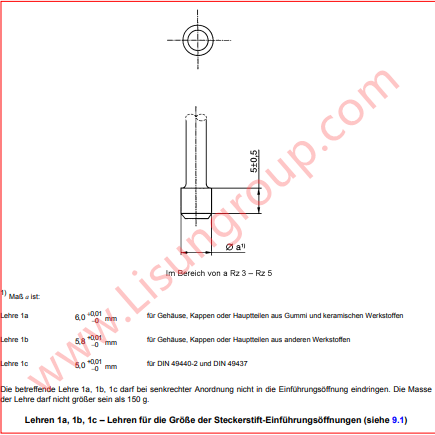

Variant 1a: Features a diameter (ø a) of 6.0 mm with a tolerance of -0/+0.01 mm, intended for sockets with housings, caps, or main parts made of rubber and ceramic materials
Variant 1b: Features a diameter (ø a) of 5.8 mm with a tolerance of -0/+0.01 mm, designed for sockets with housings, caps, or main parts made of other materials (excluding rubber and ceramic)
Variant 1c: Features a diameter (ø a) of 6.0 mm with a tolerance of -0/+0.01 mm, specified for use with products conforming to DIN 49440-2 and DIN 49437 standards
Maximum allowable mass of the gauge: 150 grams, ensuring consistent testing pressure without damaging socket components
Core function: Verifies that socket insertion openings do not allow the gauge to penetrate when positioned vertically (per DIN VDE 0620-1 requirements)

Frequently Asked Questions
