DIN-VDE 0620-1 Gauge 18 for Testing Grooves, Holes, and Undercuts

This DIN-VDE 0620-1 Gauge 18 for Testing Grooves, Holes, and Undercuts is engineered to verify the absence of unintended grooves, holes, and undercuts in fixed electrical sockets, ensuring strict compliance with DIN VDE 0620-1 standard specifications. It serves as an essential quality verification instrument for sockets utilized in household and similar applications, confirming that socket structures do not contain features that could compromise electrical safety, affect plug connection integrity, or create potential hazards such as debris accumulation or structural compromise.

Specifications:

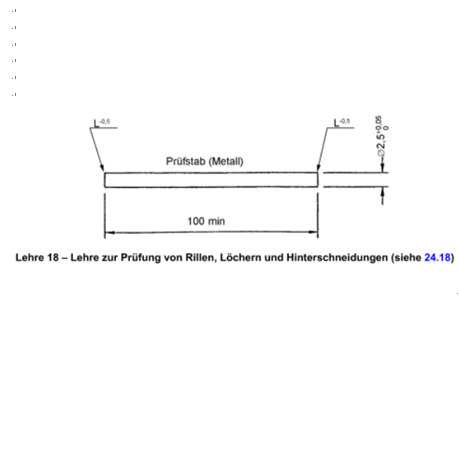

• Complies with DIN VDE 0620-1 “Stecker und Steckdosen für den Hausgebrauch und ähnliche Anwendungen – Teil 1: Allgemeine Anforderungen an ortsfeste Steckdosen” Gauge 18
• Test probe material: Metal (Prüfstab (Metall))
• Minimum length specification: 100 mm (100 min)
• Dimension tolerance: -0.5 (relevant to probe or test feature)

Test Procedures:

1. Prepare the fixed socket under test, ensuring it is in a clean, unused condition without visible external damage.
2. Inspect the gauge to confirm it meets the specified material and dimension requirements, ensuring no deformation or wear.
3. Position the metal test probe of the gauge at the opening and key contact areas of the socket, in accordance with the standard’s testing guidelines.
4. Gently insert and maneuver the probe to check for grooves, holes, or undercuts in all critical regions of the socket’s internal and external structure.
5. Verify that the probe does not catch on or fit into any unintended grooves, holes, or undercuts beyond the standard’s allowable limits.
6. Record observations of any detected non-compliant features (grooves, holes, undercuts) during the test.
7. Determine if the socket passes the test based on whether it conforms to the standard’s requirements for the absence of unacceptable grooves, holes, and undercuts.

Applications:

• Quality control testing of fixed household sockets during manufacturing to ens… (truncated)
