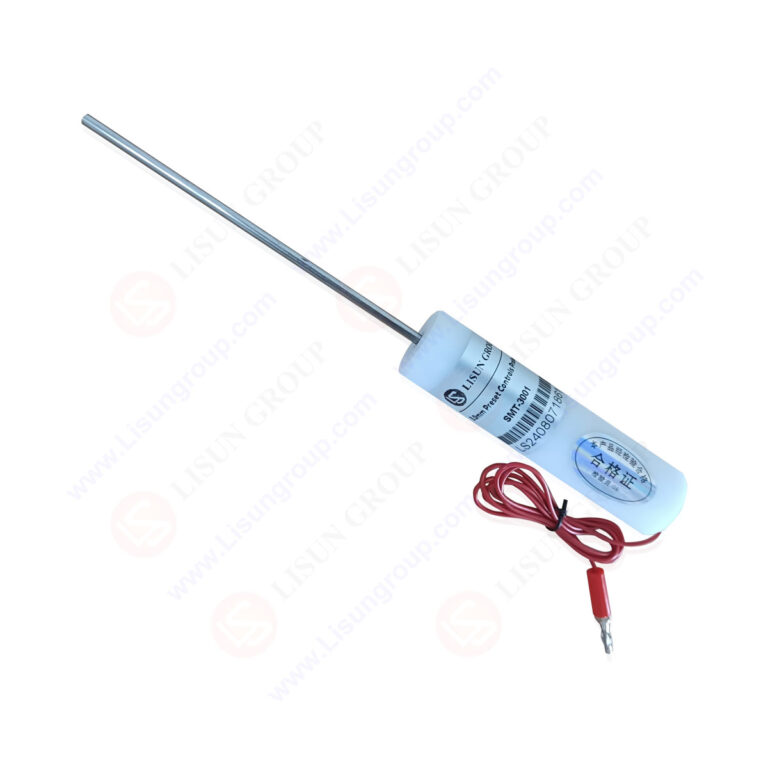

EN 61010-1 6.2.3 Compliant Test Pin with 3mm Diameter and 100mm Length

EN 61010-1 compliant test pin is a specialized safety verification tool for electrical equipment testing. It is engineered to verify whether preset control apertures (such as knob or switch openings) effectively prevent access to hazardous internal components. Featuring a 3mm diameter conductive metal rod (100mm length) for accessing narrow gaps, a 35mm diameter circular baffle to prevent over-insertion, and a 100mm insulating handle for operator protection, this instrument delivers reliable compliance verification results. It is extensively utilized for measurement, control, and laboratory equipment testing, ensuring adherence to international safety standards including IEC, EN, and UL requirements.

Specifications

• Rod Length: 100mm (±0.2mm tolerance, ensures capability to reach deep preset control apertures)
• Rod Diameter: 3mm (±0.05mm tolerance, designed to fit narrow preset control openings)
• Circular Baffle: 35mm diameter (prevents excessive insertion into equipment enclosures)
• Handle Diameter: 10mm (ergonomic design for secure operator grip)
• Handle Length: 100mm (insulating material, protects operators from electrical contact hazards)
• Material Composition: Rod: Conductive steel (ensures reliable hazardous part detection); Handle: Flame-retardant insulating plastic (UL94 V-0 rated for safety compliance)

Test Procedures

1. Inspect the test pin for rod deformation, insulation damage, or baffle impairment to ensure operational integrity.
2. De-energize the equipment under test and position it on a stable, level surface.
3. Identify preset control apertures (e.g., adjustment dial or switch openings) on the equipment enclosure.
4. Grasp the insulating handle, align the conductive rod with the aperture, and insert until the baffle contacts the equipment surface.
5. Verify whether the rod can contact hazardous components (through visual inspection or electrical continuity testing).
6. Document verification results to confirm equipment compliance with safety standard requirements.

Applications

• Safety compliance testing of laboratory instrumentation (e.g., pH meters, spectrophotometers) per EN 61010-1 Clause 6.2.3 requirements.
• Hazardous access verification for industrial control devices (e.g., PLC panels, temperature regulators) to prevent accidental contact with energized components.
• Compliance validation for medical measurement equipment (e.g., portable blood pressure monitors, diagnostic devices) according to applicable safety standards.
• Quality control verification for electrical test and measurement equipment during manufacturing and certification processes.
