EN/IEC 61032 Test Probe 13 with Cable

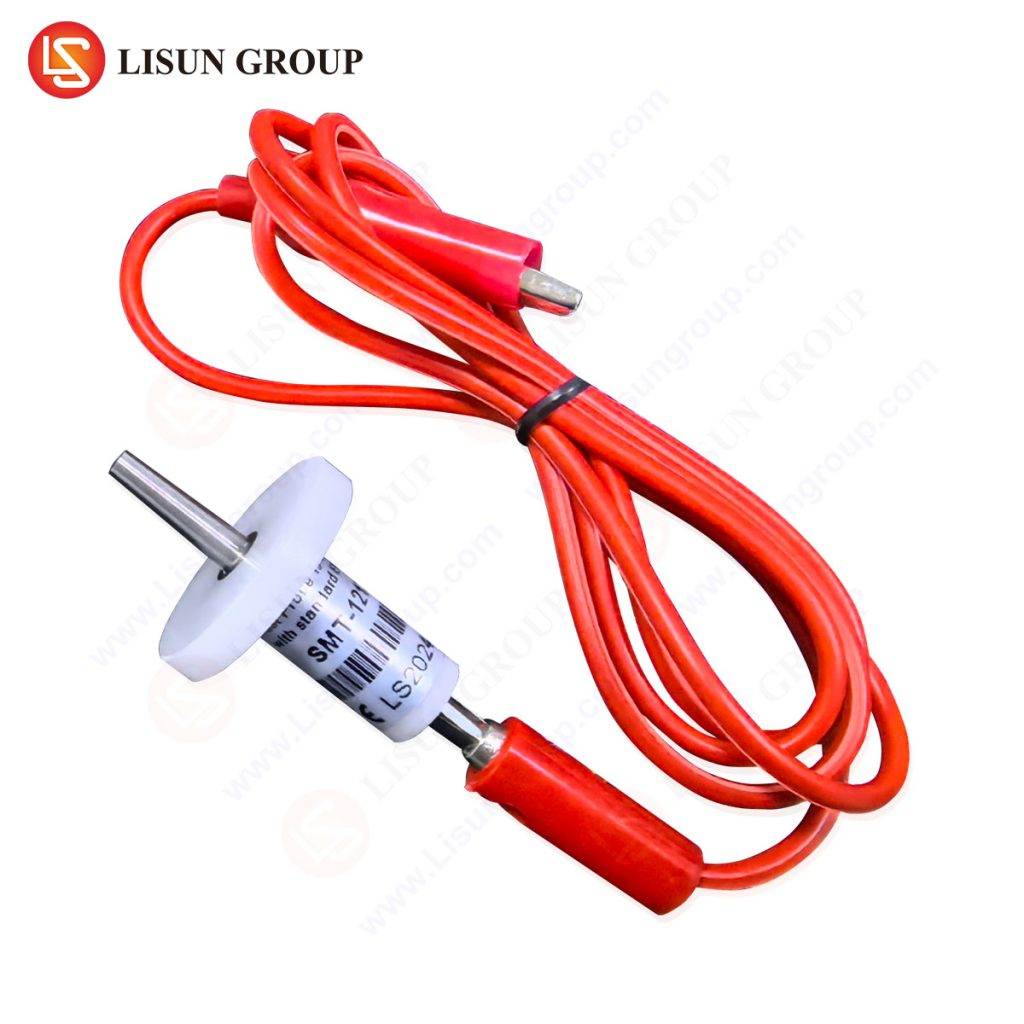

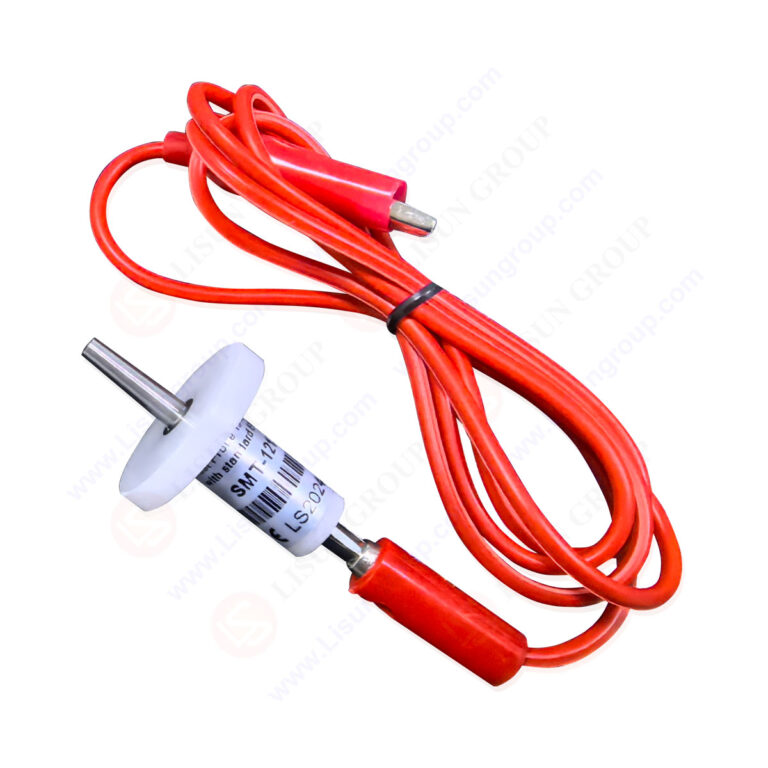

The IEC 61032 Figure 9 Test Probe 13 with Cable is a precision testing instrument designed for verifying protection against access to hazardous live parts in Class 0 and Class II electrical equipment as defined by IEC 60536 standards. The instrument features a 3mm diameter conductive metal probe with a 15mm length for accessing narrow gaps, a 25mm diameter baffle plate with 4mm thickness to prevent over-insertion, and an insulating handle constructed from flame-retardant material for operator safety. The integrated cable facilitates electrical connectivity during testing procedures, while compliance with IEC, CSA, and UL standards ensures measurement accuracy and reliability for safety verification applications.

Technical Specifications:

• Probe Dimensions: Diameter: 3mm; Length: 15mm (±0.1mm tolerance for precision access)
• Baffle Plate Specifications: Diameter: 25mm; Thickness: 4mm (prevents over-insertion into equipment enclosures)
• Handle Dimensions: Length: 20mm; Diameter: 10mm (insulating material for operator protection)
• Cable Feature: Integrated cable assembly (enhances connectivity for voltage and signal verification during testing)
• Material Composition: Probe: Conductive metal (ensures reliable electrical contact); Handle/Baffle: Insulating material (flame-retardant properties)
• Applicable Equipment Class: Class 0 electrical equipment; Class II electrical equipment (per IEC 60536 classification)

Standardized Test Procedures:

1. Inspect the probe assembly for physical damage (e.g., bent probe tip, cable insulation integrity) and verify dimensional compliance with specifications.
2. De-energize the Class 0 or Class II equipment under test and position it on a stable, non-conductive surface.
3. Identify potential access points to hazardous live parts within the equipment enclosure (e.g., ventilation slots, interface gaps).
4. Grasp the insulating handle, align the probe with the identified access point, and insert until the baffle plate contacts the equipment surface.
5. Verify whether the probe establishes contact with live parts through electrical measurement via the integrated cable or visual inspection.
6. Document test results to determine compliance with IEC 60536 safety requirements for protection against access to hazardous parts.

Primary Applications:

• Safety verification testing of Class II household appliances (e.g., double-insulated blenders, food processors) per IEC 60335-1
• Hazardous part protection assessment in medical electrical equipment according to IEC 60601-1
• Compliance testing of consumer electronics and IT equipment for enclosure safety requirements
• Quality control verification in manufacturing environments for electrical equipment safety standards
