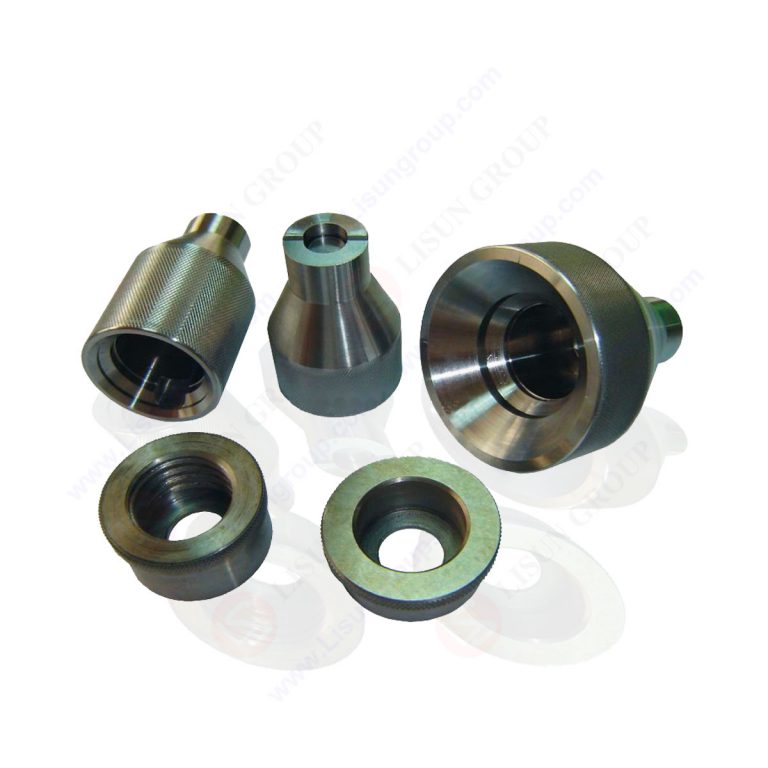

IEC 60061 Compliant “Go” and “Not Go” Lamp Cap Gauge Set

IEC 60061 Compliant “Go” and “Not Go” Lamp Cap Gauge Set Specification: Engineered to the dimensional and safety requirements specified in IEC 60061 “Lamp caps and holders together with gauges for the control of interchangeability and safety. Part 1: Lamp caps,” this precision gauge set provides definitive pass/fail verification of lamp cap and holder compliance.

• GNG-E27: For E27 lamp cap dimensional verification. Includes gauge components: 7006-27B-1, 7006-28A-1, 7006-27C-1, 7006-50-1, 7006-51A-2, 7006-51-2
• GNG-E27H: For E27 lamp holder dimensional verification. Includes gauge components: 7006-25A-2, 7006-26-4, 7006-21-5, 7006-22A-4, 7006-22B-1, 7006-22C-1, 7006-22D-1
• GNG-E14: For E14 lamp cap dimensional verification. Includes gauge components: 7006-27F-1, 7006-54-2, 7006-27G-1, 7006-55-2
• GNG-E40: For E40 lamp cap dimensional verification. Includes gauge components: 7006-27-7, 7006-28D-1, 7006-52-1, 7006-53-1
• GNG-B22D: For B22d lamp cap dimensional verification. Includes gauge components: 7006-12-8, 7006-15-7, 7006-20-4, 7006-12A-2, 7006-12B-2, 7006-15A-2, 7006-13-5, 7006-17B-1
• GNG-B22DH: For B22d lamp holder dimensional verification. Includes gauge components: 7006-12A-2, 7006-12B-2, 7006-15A-2, 7005-10-8

Additional gauge configurations are available upon request. For technical specifications and procurement, contact our technical sales department: [email protected]

Compliance Standard: IEC 60061 “Lamp caps and holders together with gauges for the control of interchangeability and safety. Part 1: Lamp caps”

Product Identification: GNG-* Series, IEC 60061 “Go” and “Not Go” Gauge Set, GNG-E27, GNG-E14, GNG-E40, GNG-B22D
