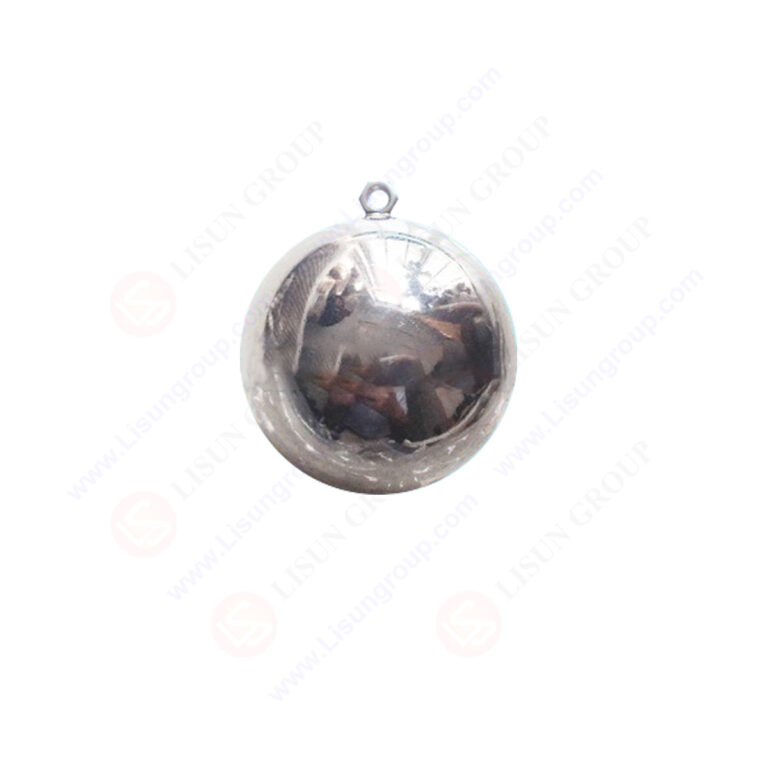

IEC 60065 Standard 40mm 265g Stainless Steel Impact Test Ball with Eyebolt

IEC 60065 Clause 18.2.3 40mm 265g Stainless Steel Impact Test Ball with Eyebolt is a precision-engineered test apparatus designed for standardized impact resistance evaluation of audio, video, and similar electronic equipment enclosures. This calibrated tool ensures compliance with the mechanical strength requirements specified in IEC 60065 Clause 18.2.3, UL 60065, CSA C22.2 No. 60065:2024, and related international safety standards.

Manufactured from 304-grade stainless steel, this impact test ball provides exceptional corrosion resistance and dimensional stability for repeatable test results across multiple testing cycles. The integrated eyebolt facilitates precise positioning and controlled free-fall release during impact testing procedures.

Technical Specifications

• Ball Diameter: 40mm ±0.5mm (ensures consistent impact surface area)
• Ball Mass: 265g ±5g tolerance (maintains standardized impact energy per IEC 60065 requirements)
• Material Composition: 304 stainless steel (provides corrosion resistance and minimal wear deformation)
• Structural Feature: Integrated threaded eyebolt (enables secure suspension and controlled release mechanisms)
• Test Standard Compliance: IEC 60065 Clause 18.2.3, UL 60065, CSA C22.2 No. 60065:2024
• Impact Energy Basis: Calculated from standard gravitational acceleration and specified drop height parameters

Standardized Test Procedure

1. Verify test ball dimensional specifications: confirm 40mm diameter and 265g ±5g mass using calibrated measurement equipment.
2. Mount the test specimen (e.g., audio speaker enclosure) on a rigid, horizontal support surface as defined in the applicable test standard.
3. Utilize the integrated eyebolt to suspend the test ball at the prescribed drop height specified in IEC 60065 Clause 18.2.3.
4. Execute controlled release to initiate free-fall impact on the designated test area of the specimen.
5. Post-impact inspection: examine specimen for enclosure fractures, component displacement, or hazardous access openings.
6. Document test parameters and results for compliance verification against impact resistance requirements.

Application Scope

• Impact resistance validation testing of audio equipment (amplifiers, speakers, receivers) per IEC 60065 Clause 18.2.3 requirements
• Mechanical safety verification of video display devices (televisions, projectors, monitors) to UL 60065 standards
• Production line quality control testing for consumer electronics (DVD players, radio receivers, audio systems)
• Compliance certification testing for electronic apparatus requiring CSA C22.2 No. 60065:2024 certification
• Pre-shipment durability assessment of audio/video equipment enclosures for mechanical integrity verification
