IEC 60245-1 Clause 5.6.3.3 IEC 60245-2 Clause 3.3 Figure 3 Power Cord Wear Resistance Test Apparatus

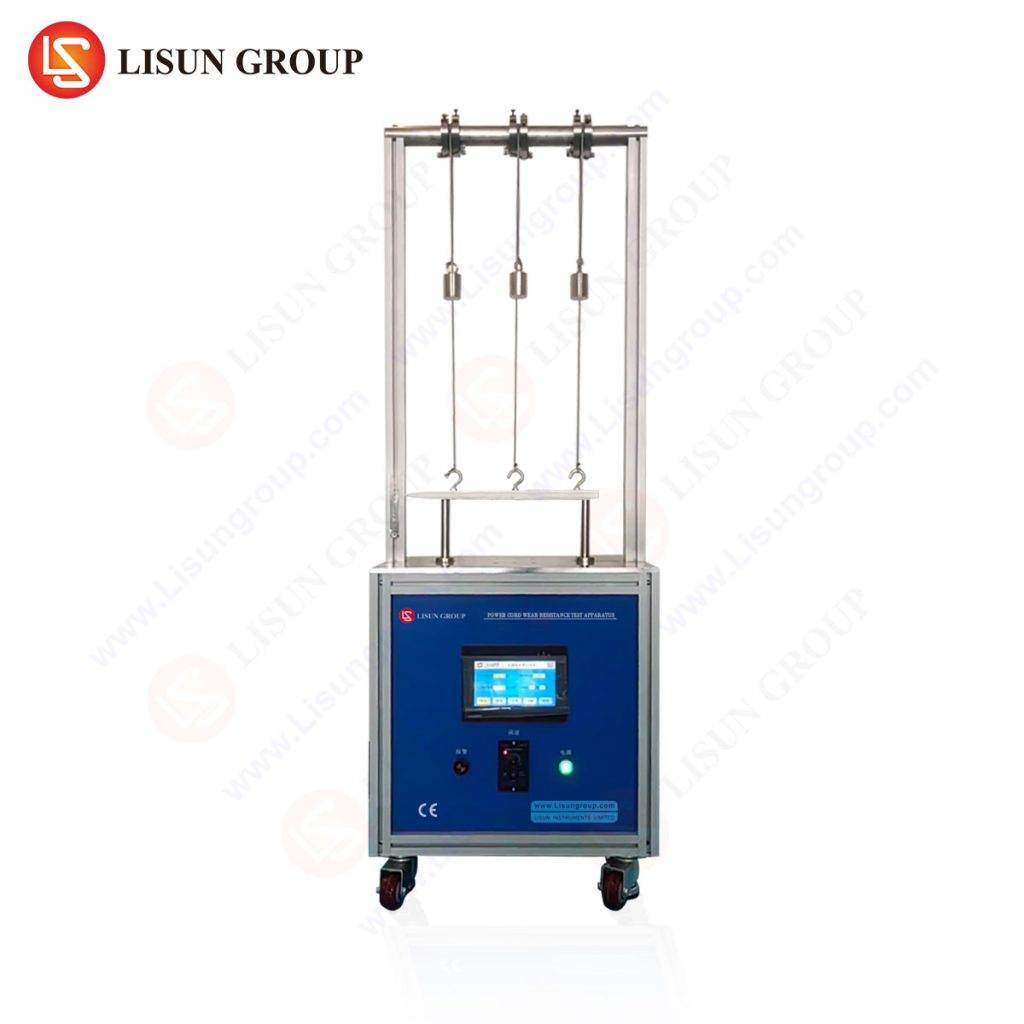

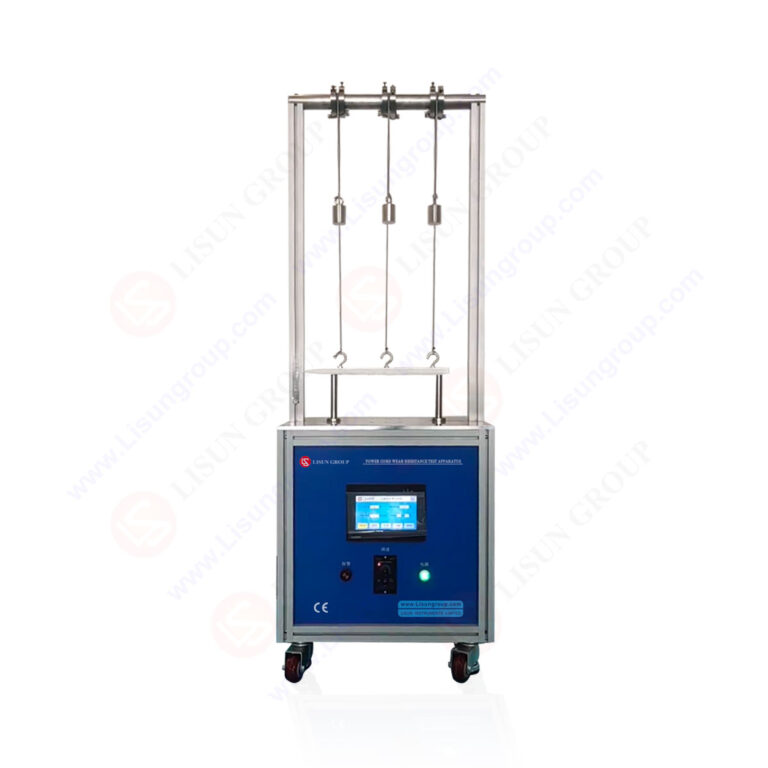

The WDT-B49 Power Cord Wear Resistance Test Apparatus is designed to evaluate the abrasion resistance of finished flexible cables. This equipment replicates real-world wear conditions using a specific sample fixation method and a reciprocating motion design. It assesses the durability of the cable’s insulation layer through ongoing mechanical action. Post-testing, voltage assessments can be conducted to confirm the integrity of the cable insulation. The apparatus accommodates multiple samples simultaneously, ensuring ease of operation and consistent, controlled testing processes, delivering precise feedback on the cable’s abrasion resistance capabilities.

Standards:

• IEC 60245-1:2008 Rubber insulated cables of rated voltage up to and including 450/750 V – Part 1: General requirements
• IEC 60245-2:2008 Rubber insulated cables of rated voltage up to and including 450/750 V – Part 2: Cables for fixed installations with copper conductors
• GB/T 5013.1-2008 Rubber insulated cables for rated voltage 450/750V and below – Part 1: General requirements
• GB/T 5013.2-2008 Rubber insulated cables for rated voltage 450/750V and below – Part 2: Cables for fixed installation

Specification:

• Workstation: 3 workstations
• Fixed Shaft Diameter: Φ40±0.3mm
• Test Rate: One-way 40±1 times/min
• Test Stroke: Move up and down within a distance of 0.1m
• Weights: 500±5g, three pieces
• Number of Trials: 0~999,999 times, adjustable
