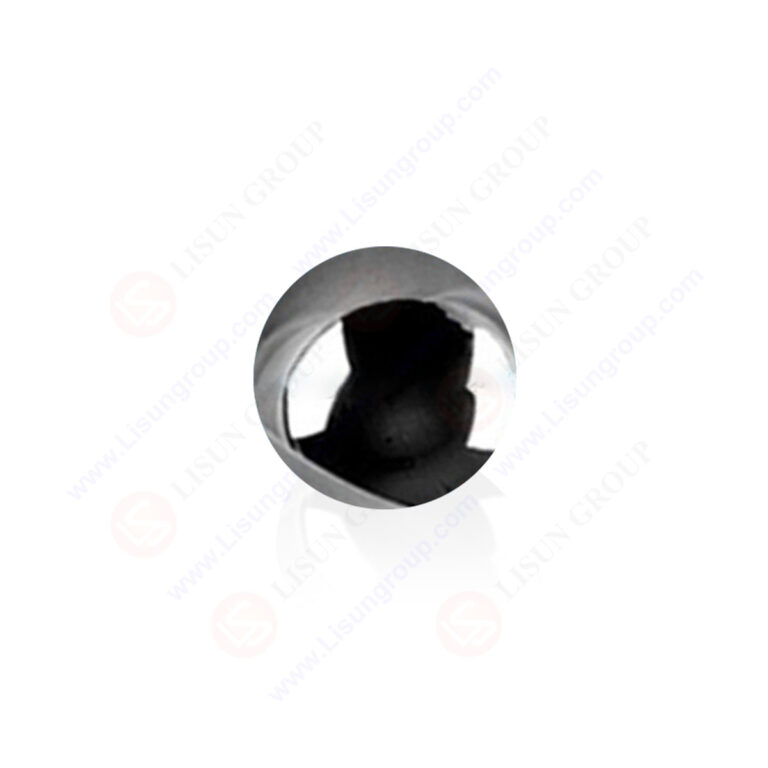

IEC 60529:2013 63.5mm 1040g Steel Test Ball without Ring

The IEC 60529:2013 63.5mm 1040g Steel Test Ball (Without Ring) is a precision impact testing instrument engineered for evaluating the mechanical robustness of large-scale equipment enclosures in accordance with international protection rating standards. This heavy-duty test apparatus is specifically designed for industrial machinery, commercial refrigeration units, data center server cabinets, and other substantial equipment requiring validation against high-impact forces.

Constructed from solid carbon steel with a density of 7.85g/cm³, the 63.5mm diameter sphere delivers calibrated impact energy to simulate extreme mechanical stress scenarios, including falling objects and industrial collisions. The “without ring” configuration facilitates integration with fixed test bench setups, eliminating suspension requirements and ensuring precise, repeatable impact positioning during standardized testing procedures.

This test instrument verifies enclosure integrity by assessing resistance to cracking, permanent deformation, or exposure of hazardous internal components following impact events. Compliance with IEC 60529:2013 ensures manufacturers can validate heavy-equipment safety and meet global regulatory requirements for protection against mechanical impacts.

Technical Specifications

• Tool Type: 63.5mm Steel Test Ball (Without Ring configuration for heavy-duty equipment enclosure impact testing)
• Material: Solid carbon steel (density: 7.85g/cm³; maintains structural integrity under high-impact conditions; corrosion-resistant formulation)
• Key Dimensions:
  • Ball diameter: 63.5 mm ±0.5 mm
  • Ball weight: 1040 g ±10 g
• Surface Treatment: Precision-machined smooth finish (eliminates burrs and surface imperfections to prevent artificial scoring of test specimens; ensures uniform impact force distribution)
• Typical Impact Height Range: 1.5–2.5 meters (adjustable per equipment category specifications in IEC, UL, and GB/T standards)
• Primary Function: Delivers calibrated high-impact force to evaluate structural integrity of heavy-duty enclosures; verifies containment of hazardous components post-impact

Standardized Test Procedure

1. Inspect the steel test ball for surface defects (dents, cracks, irregularities) to ensure testing accuracy and compliance with IEC 60529:2013 requirements.
2. Secure the equipment under test (EUT) on a reinforced, non-slip test platform with appropriate fixturing.
3. Configure the test apparatus to the specified impact height (e.g., 2.0m for industrial machinery per applicable standards).
4. Position the steel test ball at the predetermined height using a calibrated lifting mechanism and execute free-fall release.
5. Following impact, conduct visual and dimensional inspection of the EUT enclosure for cracks, permanent deformation, or component displacement.
6. Document test results including impact parameters, enclosure condition, and compliance assessment against relevant standards (IEC, UL, ISO, ASTM).
