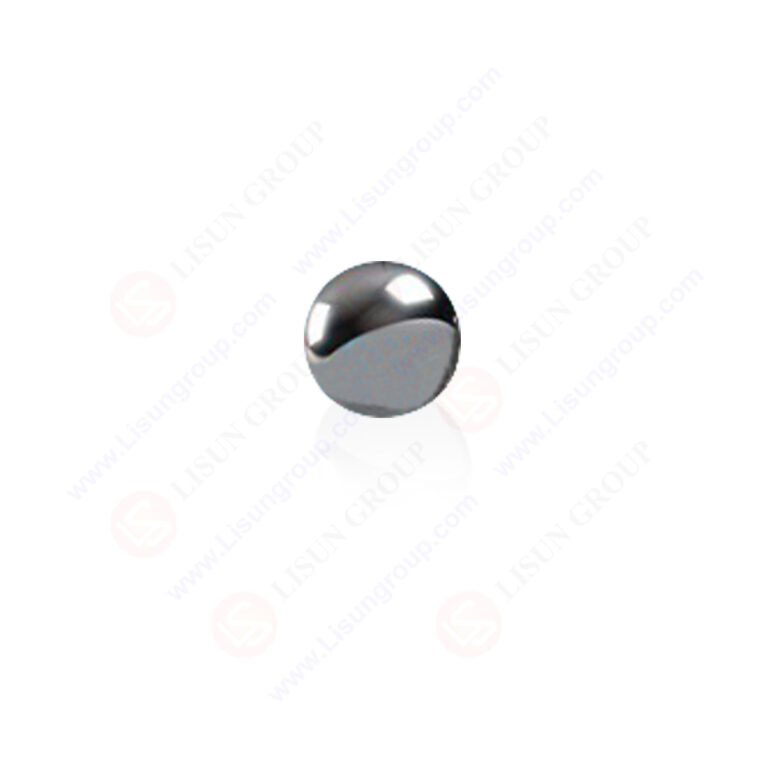

IEC 60745-1 6mm Stainless Steel Test Sphere

The IEC 60745-1 6mm Stainless Steel Test Sphere is a precision safety verification instrument engineered to assess whether hand-held motor-operated electric tools effectively prevent the ingress of small objects—a critical evaluation for mitigating internal component damage and electrical shock hazards. Fully compliant with IEC 60745-1 Clause 8.2 specifications, this test tool is manufactured from 304-grade stainless steel to ensure exceptional durability and exact dimensional precision. Its polished, burr-free surface guarantees consistent testing outcomes by accurately simulating real-world small objects that may inadvertently contact tool enclosures. Lightweight yet mechanically robust, this test sphere is indispensable for manufacturers, testing laboratories, and certification bodies validating the protective performance of hand-held electric tools.

Specifications:
• Diameter: 6mm (±0.05mm tolerance; conforms to IEC 60745-1 small object entry test requirements)
• Material: 304 stainless steel (corrosion-resistant, wear-resistant; maintains dimensional stability through repeated testing cycles)
• Surface Finish: Precision polished (Ra ≤ 0.8μm; absence of burrs or sharp edges prevents damage to tool enclosures during testing)
• Weight: Approximately 0.9g (calculated based on 7.85g/cm³ stainless steel density; ensures uniform handling characteristics)
• Functional Purpose: Verifies tool enclosure capability to prevent ingress of 6mm-diameter small objects (per IEC 60745-1 safety standard requirements)
• Dimensional Consistency: 100% inspected for diameter tolerance; units exceeding ±0.05mm range are rejected

Test Procedures:
• Inspect the stainless steel test sphere for surface imperfections, deformation, or corrosion; verify diameter compliance with 6mm ±0.05mm specifications.
• De-energize the hand-held electric tool under evaluation and position it securely on a level, stable testing surface.
• Identify potential ingress points (e.g., ventilation apertures, switch openings, housing seam interfaces).
• Position the test sphere gently on each identified ingress point; apply controlled, consistent pressure (simulating accidental contact scenarios).
