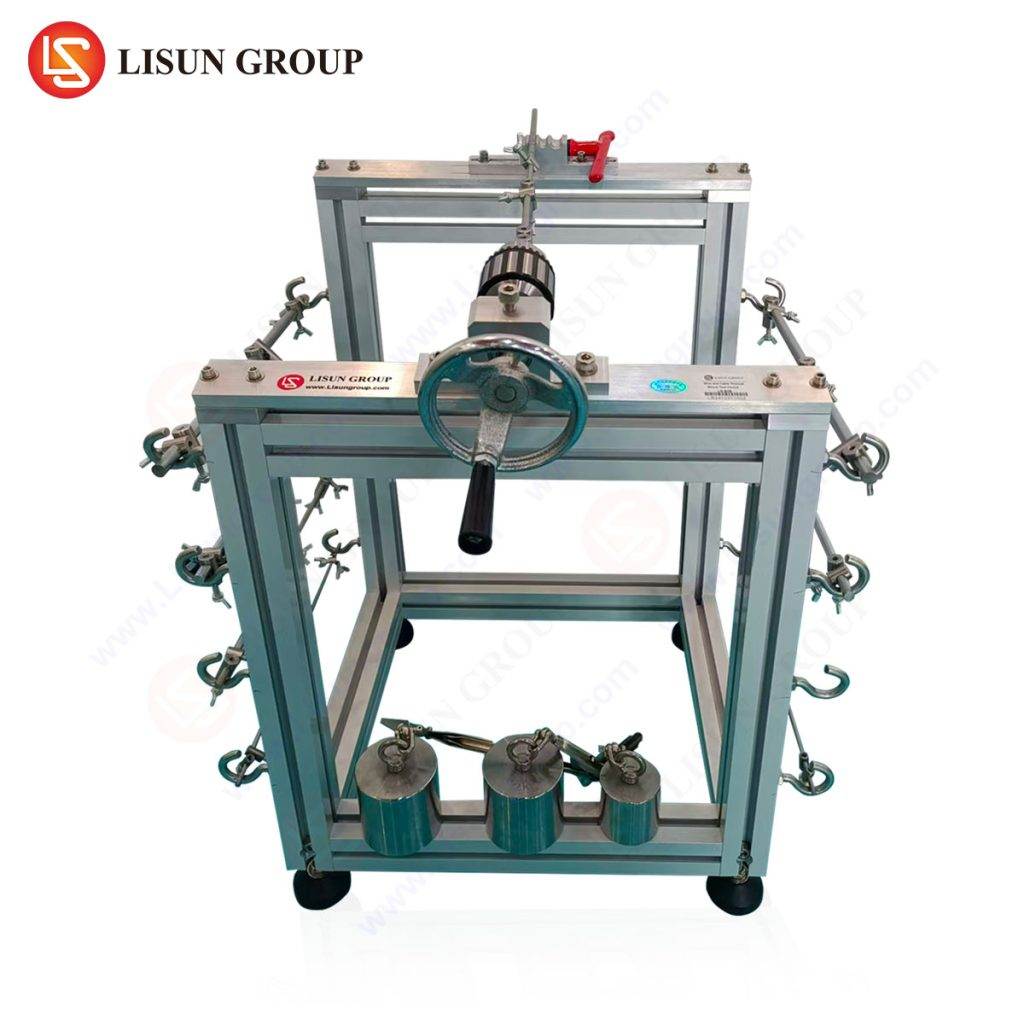

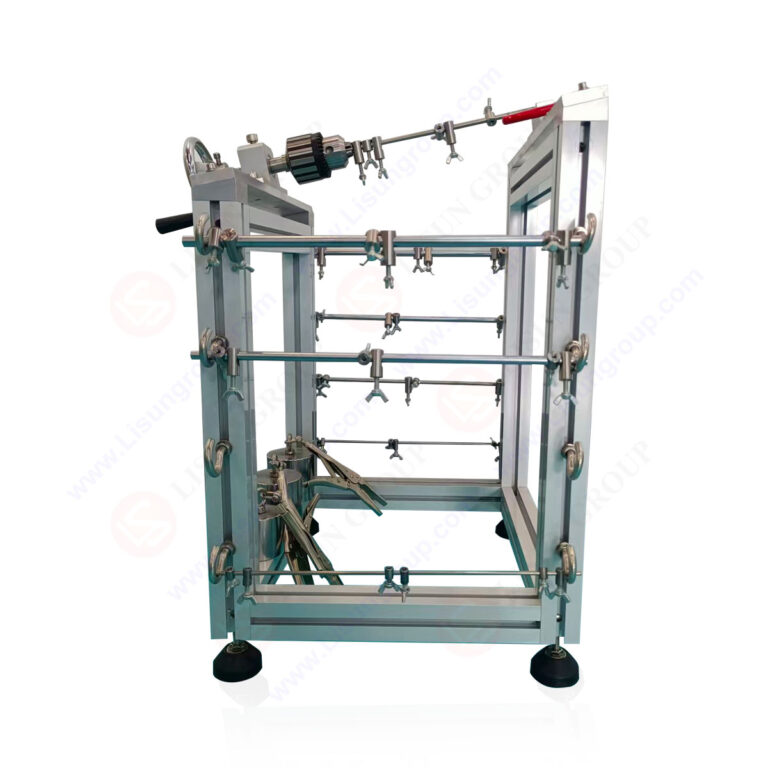

IEC 60754-1 Wire and Cable Thermal Shock Test Device
Leave a Message
The LS-B38 Wire and Cable Thermal Shock Test Device is a precision instrument engineered for evaluating the thermal shock resistance of wire and cable materials in accordance with international testing standards. This equipment simulates controlled thermal shock environments through specialized sample fixation, molding, and testing mechanisms to conduct standardized assessments on wire and cable specimens. The device enables laboratory technicians to observe and document crack formation in test samples following thermal exposure, providing quantitative data for evaluating material structural integrity and thermal resistance performance. This testing ensures compliance with technical specifications for wire and cable products subjected to thermal stress conditions.
Compliance Standards:
- GB/T 32129-2015 – Halogen-free low-smoke flame-retardant cables rated 450/750V and below
- IEC 60754-1:2019 – Test on gases evolved during combustion of materials from cables – Part 1: Determination of halogen acid gas content
Technical Specifications:
- Sample Dimensions: Length: 127mm; Width: 6.0±0.1mm; Thickness: 3.0±0.1mm
- Test Rod Configuration: Diameter: 6mm, 4 pieces (length approximately 300mm)
- Accessories: 1 heavy-duty clamping assembly, 1 precision punching tool (127 mm × 6 mm)
- Test Stand: 1 complete assembly
- Winding Stand: 1 complete assembly
- Sample Fixture: 1 complete assembly
- Construction Materials: Bracket and clamp components manufactured from corrosion-resistant stainless steel
- Calibration Weights: 3 sets of 2kg weights, 1 set of 1kg weight
Product Identification: LS-B38
