IEC 60884-1 Clause 24.12 Mechanical Durability Test Probe
Leave a Message

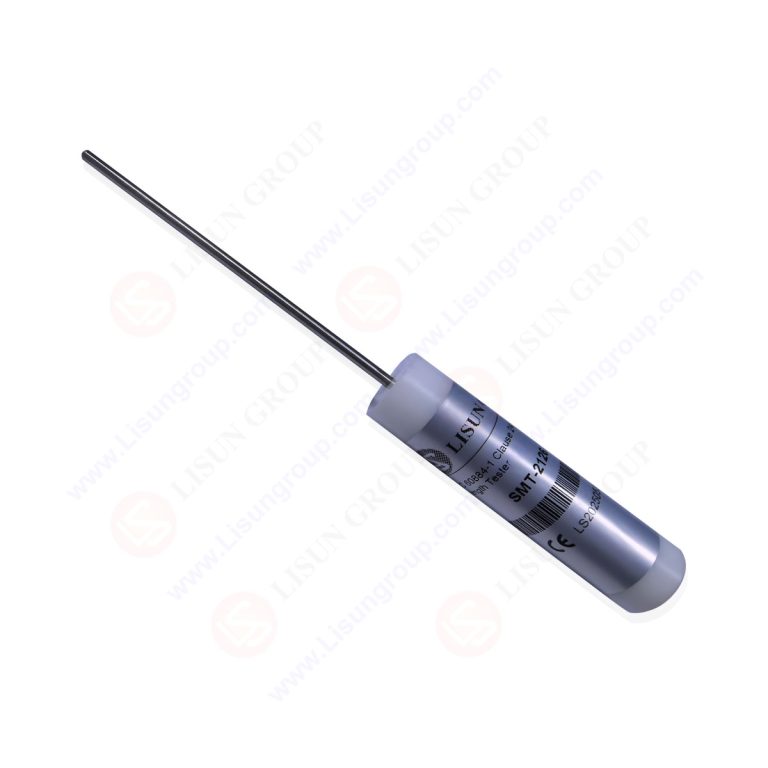

The IEC 60884-1 Clause 24.12 Mechanical Durability Test Probe is a precision instrument engineered for compliance verification of portable socket-outlet safety requirements. This specialized tool assesses two critical mechanical safety parameters: the clearance between the socket’s suspension mechanism and adjacent surfaces, and the structural integrity of insulation barriers separating live components. Fabricated from 304 stainless steel for the probe element (ensuring corrosion resistance and dimensional stability under load) with a POM handle (providing ergonomic operation and thermal stability up to 120°C), the instrument features a Φ3mm ± 0.05mm tip terminating in an SR1.5mm ± 0.05mm hemispherical profile for controlled force application. The M6 threaded interface facilitates connection to standard push-pull force gauges, enabling application of 1.5× the maximum plug withdrawal force specified in IEC 60884-1 Table 16, maintained for the required 10-second duration to validate mechanical robustness under operational conditions.
Specifications:
Tool Classification: Mechanical Strength Test Probe (IEC 60884-1 Clause 24.12 compliance; for mobile socket suspension clearance and insulation barrier testing)
Probe Construction Material: 304 stainless steel (high rigidity; maintains dimensional integrity under test loads; corrosion-resistant for extended service life)
Handle Construction Material: POM (polyoxymethylene; thermal stability to 120°C; ergonomic design for controlled force application; low-friction surface for measurement consistency)
Probe Dimensional Parameters:
– Diameter: Φ3mm ± 0.05mm
– Tip Geometry: Hemispherical profile (SR1.5mm ± 0.05mm; prevents artificial damage to socket insulation barriers during testing)
Force Application System:
– Interface: M6 threaded connection at handle termination (compatible with standard push-pull force measurement instrumentation)
– Applied Force Magnitude: 1.5× maximum plug withdrawal force (per IEC 60884-1 Table 16 specifications); maintained for 10-second duration
Primary Function: Validates mobile socket suspension barrier penetration resistance and suspension mechanism structural integrity; ensures live components remain inaccessible following mechanical stress testing
Test Procedures
1. Conduct visual inspection of probe assembly for tip deformation, handle fractures, or thread damage; verify tip sphericity (SR1.5mm).
