IEC 60884-1 Clause 28.1.3 Figure 43 Plug Pin Insulation Sleeve Thermal Endurance Test Apparatus

IEC 60884-1 Clause 28.1.3 Figure 43 Plug Pin Insulation Sleeve Thermal Endurance Test Apparatus

Product No: LS-B17

Leave a Message






    captcha

    Description

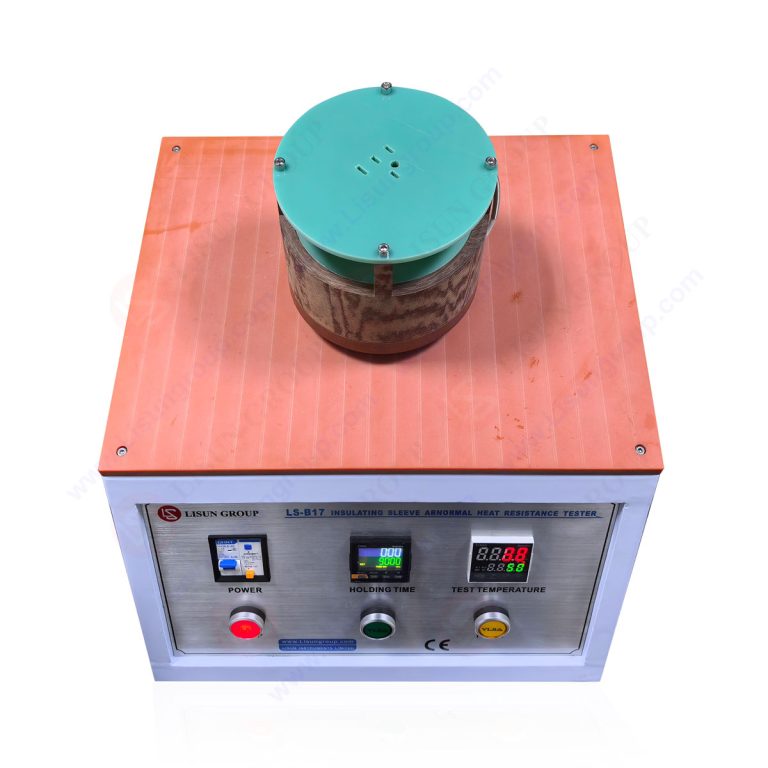

  • The LS-B17 Plug Pin Insulation Sleeve Thermal Endurance Test Apparatus subjects copper sockets to controlled heating via a heating plate to simulate abnormal thermal conditions encountered by pin insulation sleeves. This apparatus evaluates the thermal endurance characteristics of relevant components while also conducting flame resistance assessments, providing reliable testing capabilities for plug product quality verification.

    Standard:

    Standards Standards Name
    IEC 60884-1:2022 Household and similar plug and socket-outlets – Part 1: General requirements
    GB/T 2099.1-2021 家用和类似用途插头插座 第 1 部分：通用要求

    Specification:
    • Insulation plate: 5mm thick round flat surface, diameter is twice the diameter of the test piece contact surface, made of bakelite or epoxy board
    • Metal part B (fixture): length greater than 20mm, made of brass, standard with GB6A two-pin, GB10A three-pin, GB16A three-pin, etc., can be customized
