Product No: WDT-1

Leave a Message






    captcha

    Description

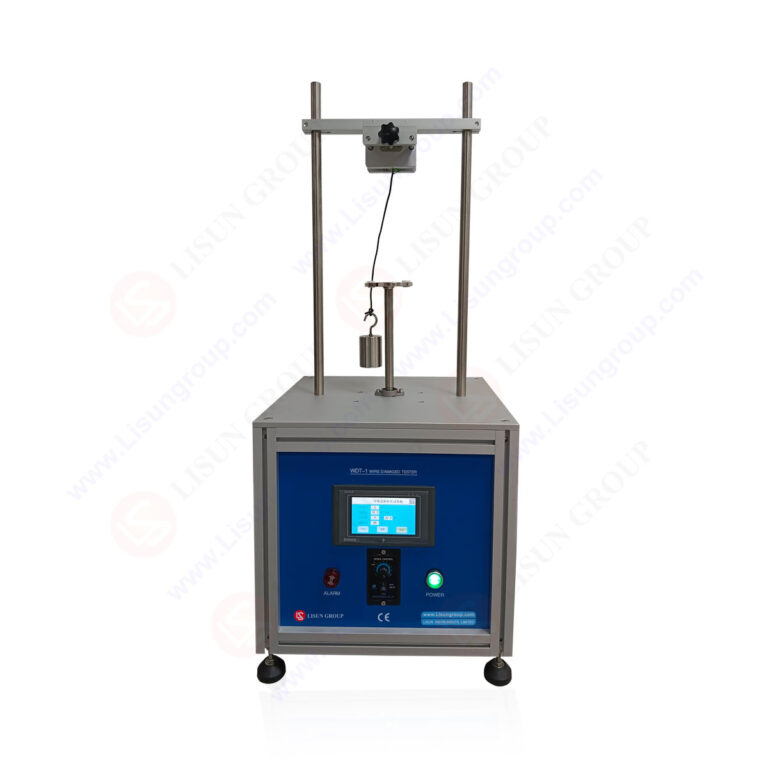

    WDT-1 Wire Damage Tester employs a precision guide rail and lead screw structural design. The test cycle count is pre-programmable, with automatic termination and audible alert upon completion of the preset cycles. This apparatus is utilized to assess the capacity of screw-type and screwless-type terminals to withstand mechanical stresses encountered during normal operation, thereby verifying compliance with regulatory requirements that mandate minimal conductor damage during clamping operations.

    Compliance Standards:

    • IEC 60884-1:2022 – Plugs and socket-outlets for household and similar purposes – Part 1: General requirements
    • IEC 60669-1:2017 – Switches for household and similar fixed electrical installations – Part 1: General requirements
    • IEC 60998-2-2:2023 – Connecting devices for low-voltage circuits for household and similar purposes – Part 2-2: Particular requirements for connecting devices with screw-type and screwless-type terminals
    • UL 486A-B:2021 – Standard for Safety Plugs, Receptacles, and Couplers for Use in Ordinary Locations
    • GB/T 2099.1-2021 – 家用和类似用途插头插座 第 1 部分:通用要求
    • GB 16915.1-2024 – 家用和类似用途固定式电气装置的开关 第 1 部分:通用要求
    • GB/T 13140.3-2008 – 家用和类似用途低压电路用的连接器 第 3 部分:特殊要求 第 2 节:螺纹型和无螺纹型夹紧件的连接器

    Technical Specifications:

    Model WDT-1 WDT-1A WDT-1B
    Control System Electrical control, push-button operation Electrical control, push-button operation Electrical control, push-button operation
    Workstation Configuration Single workstation Single workstation Single workstation
    Rotational Speed 5–12 rpm (adjustable) 5–12 rpm (adjustable) 5–12 rpm (adjustable)
    Rotation Diameter 75 mm 75 mm, 76 mm 75 mm
    Test Duration 0–99 min 59 s (adjustable) 0–99 min 59 s (adjustable) 0–99 min 59 s (adjustable)
    Test Cycles 0–999,999 (adjustable) 0–999,999 (adjustable) 0–999,999 (adjustable)
    Applied Load Mass 0.3, 0.4, 0.7, 0.9, 1.4, 2.0 kg 0.2, 0.3, 0.4, 0.7, 0.9, 1.4, 2.0, 2.9, 4.5, 6.8 kg 0.3, 0.4, 0.7, 0.9, 1.4, 2.0, 2.3, 3.6, 4.5, 6.8, 8.2, 11.4, 13.6, 18.2, 22.7, 27.2, 36.3, 45.4 kg (stacking weights required for masses exceeding 8.2 kg)
    Vertical Displacement 240–300 mm (adjustable) 240–640 mm (adjustable) 240–640 mm (adjustable)
    Conductor Diameter Range 6.5, 9.5, 13, 14.5 mm 6.4, 6.5, 9.5, 13, 14.5 mm 6.5–31.8 mm (13 discrete sizes)
    Height Adjustment Mechanism Manual adjustment Manual adjustment Manual adjustment

    Applicable Standard Clauses: IEC 60884-1 Clause 12.2.5 and Figure 11; IEC 60669-1 Clause 12.2.5 and Figure 10; IEC 60998-2-2 Clause 12.2.5 and Figure 101.
