IEC 60884-1 Figure11 | IEC 60669-1 Figure10 | IEC 60998-2-2 Figure101 Wire Damaged Tester

IEC 60884-1 Figure11 | IEC 60669-1 Figure10 | IEC 60998-2-2 Figure101 Wire Damaged Tester

Product No: WDT-1

Leave a Message






    captcha

    Description

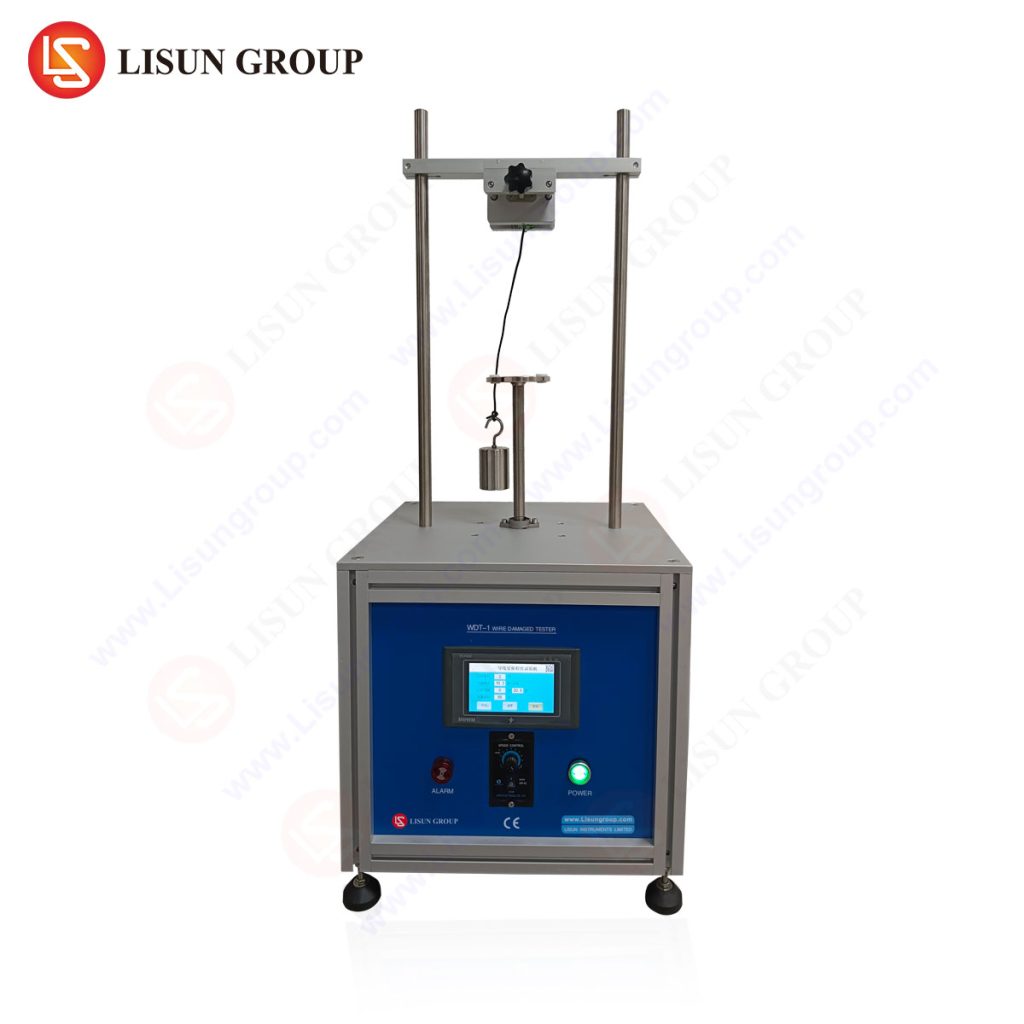

    WDT-1 Wire Strength Damaged Tester utilizes a guide rail and lead screw structural design. The test count can be preset, and the device will automatically cease operation and emit an audible alert upon completion of the predetermined test count. This apparatus is employed to evaluate the endurance of threaded and unthreaded terminals against mechanical stress during standard operational conditions, thereby determining if the terminal’s design and construction comply with the requisite standards to prevent excessive wire damage during clamping. Standards: IEC 60884-1:2022 Plugs and socket-outlets for household and similar purposes – Part 1: General requirements IEC 60669-1:2017 Switches for household and similar fixed electrical installations – Part 1: General requirements IEC 60998-2-2:2023 Connecting devices for low-voltage circuits for household and similar purposes – Part 2-2: Particular requirements for connecting devices with screw-type and screwless-type terminals UL 486A-B:2021 Standard for Safety Plugs, Receptacles, and Couplers for Use in Ordinary Locations GB/T 2099.1-2021 Plugs and socket-outlets for household and similar purposes – Part 1: General requirements GB 16915.1-2024 Switches for household and similar fixed electrical installations – Part 1: General requirements GB/T 13140.3-2008 Connecting devices for low-voltage circuits for household and similar purposes – Part 3: Particular requirements for connecting devices with screw-type and screwless-type terminals Specification: LISUN Model WDT-1 WDT-1A WDT-1B Control and Operation Electrical control, button operation Workstation Single Workstation Working Speed 5~12 rpm (Adjustable) Rotation Diameter 75mm 75mm, 76mm Test Time 0~99min59s (Adjustable) Test Laps 0~999,999 (Adjustable) Load Weight 0.3, 0.4, 0.7, 0.9, 1.4, 2.0kg 0.2, 0.3, 0.4, 0.7, 0.9, 1.4, 2.0, 2.9, 4.5, 6.8 kg 0.3, 0.4, 0.7, 0.9, 1.4, 2.0, 2.3, 3.6, 4.5, 6.8, 8.2, 11.4, 13.6, 18.2, 22.7, 27.2, 36.3, 45.4kg (For weights above 8.2 kg, use stacking weights) Height Distance 240~300mm (Adjustable) 240~640mm (Adjustable) Casing Diameter 6.5, 9.5, 13, 14.5mm 6.4, 6.5, 9.5, 13, 14.5mm 6.5~31.8mm (13 in total) Height Adjustment Method Manual Adjustment Standards IEC 60884-1 Clause 12.2.5 and Figure 11; IEC …
