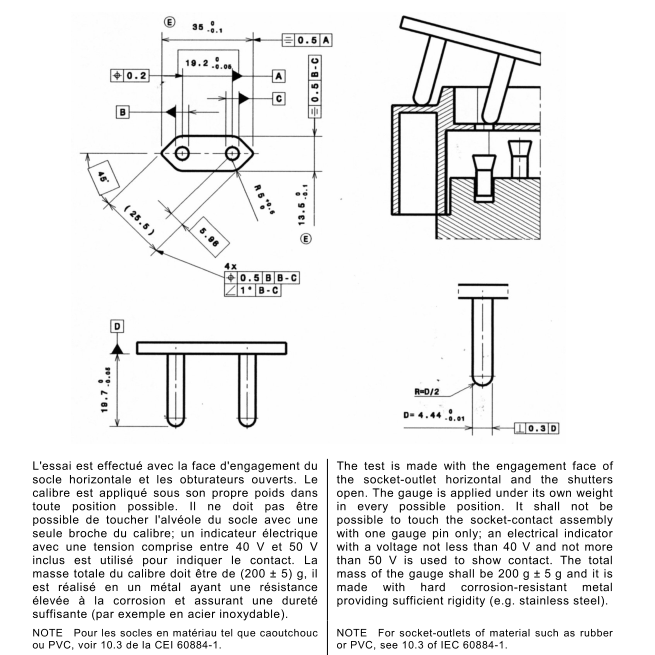

IEC 60906-1 Figure 1 Single-Pole Insertion Prevention Test Gauge for 16A 250V A.C. Socket-Outlets

This IEC 60906-1 Figure 1 Single-Pole Insertion Prevention Test Gauge is precision-engineered to comply with IEC 60906-1 Figure 1 standards, designed exclusively to verify the single-pole insertion prevention function of 16A 250V A.C. household and similar-purpose socket-outlets. It features a robust construction with corrosion-resistant, high-rigidity metal (e.g., stainless steel) and is calibrated to apply test force under its own weight, ensuring accurate simulation of real-world usage scenarios. Equipped with an electrical contact indicator (40V-50V), the gauge effectively confirms whether socket-outlets can prevent accidental single-pole insertion— a critical safety requirement to mitigate electric shock risks. As an essential tool for compliance testing, it supports quality assurance and certification processes for electrical accessories adhering to international safety norms.

Specifications

• Test standard compliance: IEC 60906-1 Figure 1 (for 16A 250V A.C. plugs and socket-outlets); references IEC 60884-1 Subclause 10.3
• Core function: Verifies impossibility of single-pole insertion into socket-outlets
• Total mass: 200 g ± 5 g (calibrated for self-weight application)
• Material: Hard, corrosion-resistant metal with sufficient rigidity (e.g., stainless steel)
• Key dimensional parameters: D = 4.44 ± 0.01 mm; 19.2 -0.06 mm; R = D/2; 0.2 mm, 0.3D, 35 mm (critical dimensions as per standard)
• Electrical indicator requirement: Compatible with indicators rated 40 V to 50 V (inclusive) for contact detection
• Test application method: Applied under its own weight in all possible positions
• Compatibility: Designed for 16A 250V A.C. household and similar-purpose socket-outlets (special note for rubber/PVC material sockets per IEC 60884-1 Clause 10.3)

Test Procedures

• Inspect the gauge for structural integrity, ensuring no deformation, corrosion, or damage to pins; verify total mass falls within 200 g ± 5 g.
• Prepare the 16A 250V A.C. socket-outlet to be tested, ensuring … (truncated)
