IEC 60906-1 Figure 6 Plug and Socket Gauge for Minimum Withdrawal Force Verification

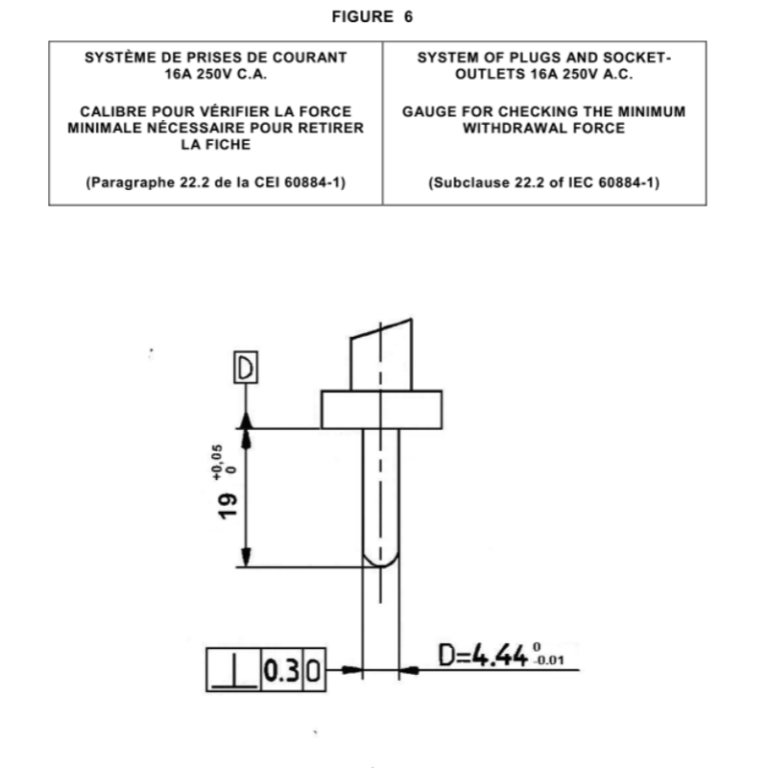

Gauge for IEC 60906-1:2009 Figure 6 verification of minimum withdrawal force requirements. The gauge shall be manufactured from hard corrosion-resistant metal material (e.g., stainless steel).

NOTE: In South African applications, minimum withdrawal force testing must be conducted using gauges with pin dimensions specified in IEC 60884-1:2022 Subclause 22.2. This requirement prevents hazardous compatibility issues with Class II plugs compliant with EN 50075:1990 specifications.

Compliance Standards:

• IEC 60906-1:2009 – IEC system of plugs and socket-outlets for household and similar purposes – Part 1: Plugs and socket-outlets 16 A 250 V a.c.
• IEC 60884-1:2022 – Plugs and socket-outlets for household and similar purposes – Part 1: General requirements
• EN 50075:1990 – Specification for flat non-wirable two-pole plugs 2.5 A 250 V, with cord, for the connection of class II-equipment for household and similar purposes
