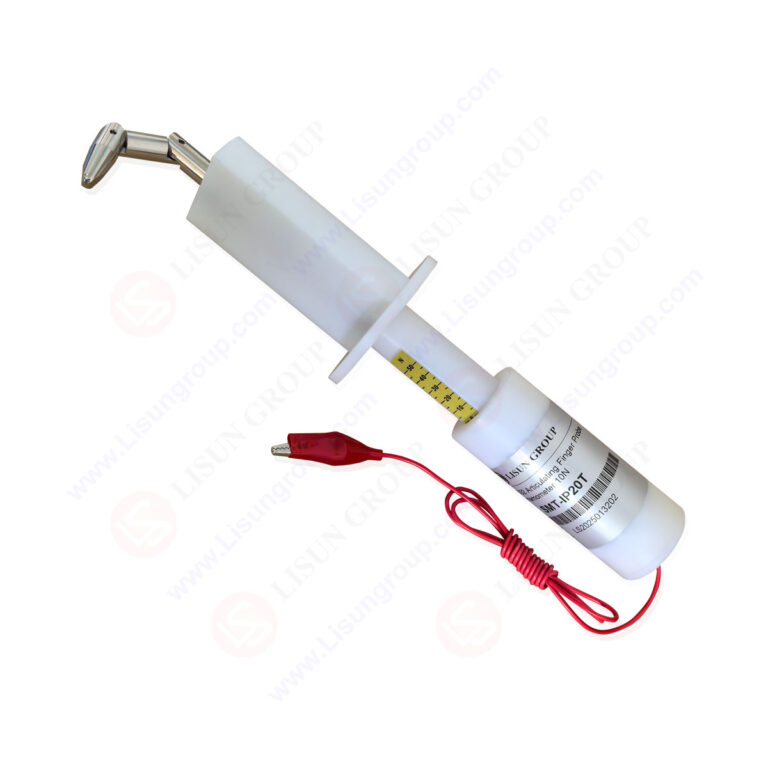

IEC 61032 Articulating Finger Probe with Dynamometer 10N

The IEC 61032 Articulating Finger Probe with Dynamometer 10N is a precision testing instrument engineered for evaluating the protection against access to hazardous parts in electrical equipment enclosures. This articulating probe assembly incorporates an integrated 10N dynamometer to verify compliance with international safety standards governing mechanical protection testing.

Constructed with precision-machined components, the probe features a knurled finger with standardized dimensions: 12mm diameter and 80mm length, ensuring consistent application force during testing procedures. The articulating joint mechanism allows for controlled movement to simulate human finger access attempts at various angles and orientations.

This testing instrument is essential for manufacturers, testing laboratories, and quality control departments to validate that equipment enclosures prevent access to hazardous live parts, moving components, or other dangerous elements. The integrated 10N dynamometer provides accurate force measurement during testing, ensuring repeatable results across multiple test cycles.

Standards Compliance:
IEC 61032:1997 + A1:2001 + A2:2013 – Test probes for verifying protection of persons against access to hazardous parts
IEC 60529:2013 – Degrees of protection provided by enclosures (IP Code)
UL 60950-1:2014 – Safety of information technology equipment
GB/T 4208-2017 – Degrees of protection provided by enclosures (IP Code)
EN 60529:1991 + A1:2000 + A2:2013 – Degrees of protection provided by enclosures (IP Code)

Technical Specifications:
Probe Type: Articulating finger probe with integrated dynamometer
Standard Compliance: IEC 61032 Test Probe B
Dynamometer Capacity: 10 Newtons (N)
Finger Dimensions:
– Diameter: 12mm ± 0.1mm (knurled surface)
– Length: 80mm ± 0.5mm (knurled surface)
Articulation Range: 180° minimum
Construction: Precision-machined stainless steel components
Force Measurement Accuracy: ±0.5N
Calibration: Traceable to national standards

Application Scope:
This testing instrument is utilized for:
– Verification of IP2X protection according to IEC 60529
– Testing accessibility to hazardous parts in electrical equipment
– Compliance validation for IT equipment, industrial controls, and consumer electronics
– Quality assurance testing during manufacturing processes
– Third-party laboratory certification testing

The IEC 61032 Articulating Finger Probe with Dynamometer 10N provides laboratory technicians and quality engineers with a reliable, standardized tool for conducting repeatable safety tests. Its precision construction ensures consistent performance across extended testing periods, while the integrated dynamometer eliminates the need for separate force measurement devices, streamlining the testing workflow.
