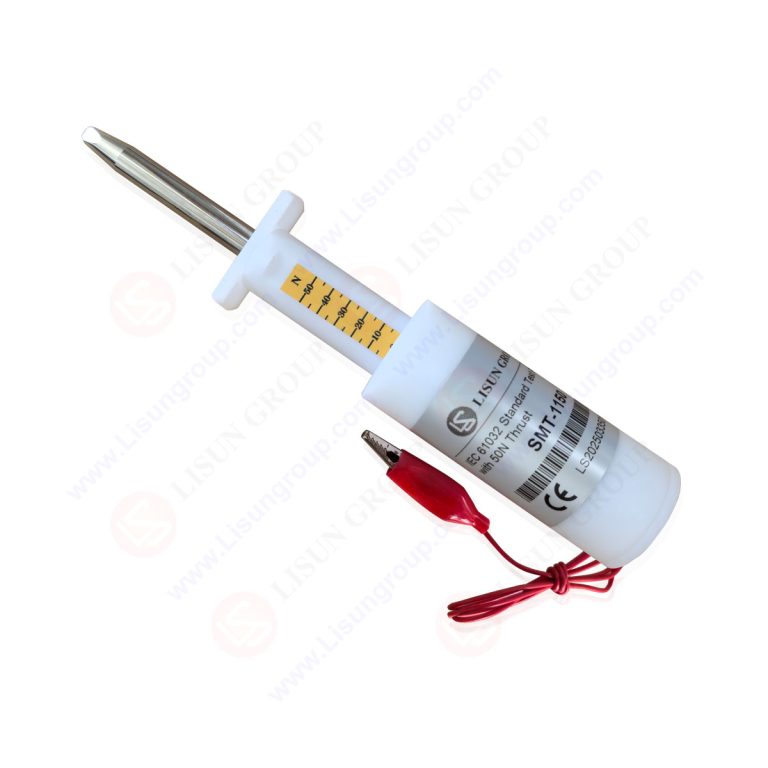

IEC 61032 Figure 11 Test Probe with 50N Thrust

IEC 61032 Figure 11 Test Probe with 50N Thrust is a precision safety testing instrument engineered to validate the mechanical resistance and hazard inaccessibility of electrical equipment enclosures in accordance with international safety standards. The probe features a rigid stainless steel construction for dimensional stability under applied force and an insulating nylon handle designed for controlled, non-slip operation during testing procedures.

Engineered to apply a calibrated 50N thrust force, this instrument simulates moderate external pressure on equipment enclosures to determine whether hazardous internal components remain inaccessible. The probe’s hemispherical tip (radius 6 mm ± 0.05 mm) ensures consistent contact without damaging enclosure surfaces during compliance testing.

This test probe is essential for manufacturers, testing laboratories, and quality control departments conducting safety evaluations per IEC 61032, UL, and other international standards. It provides objective verification of equipment durability and safety compliance through standardized mechanical testing protocols.

Technical Specifications

• Probe Type: IEC 61032 Figure 11 Test Probe with 50N Thrust
• Probe Material: Stainless steel (rigid, corrosion-resistant, maintains dimensional stability under 50N force)
• Handle Material: Nylon (insulating, heat-resistant, non-slip for controlled force application)
• Key Dimensions:
  • Probe Diameter: 12 mm ± 0.1 mm
  • Effective Probe Length: 100 mm ± 0.2 mm
  • Total Length (Probe + Handle): 200 mm ± 0.5 mm
  • Probe Tip: Hemispherical, radius 6 mm ± 0.05 mm (smooth to avoid enclosure damage)
• Applied Thrust: 50N ± 1N (precise force to simulate moderate external pressure on enclosures)
• Core Function: Verifies enclosure mechanical resistance and inaccessibility of hazardous parts in electrical equipment per IEC/UL standards

Standardized Test Procedures

1. Inspect the probe for damage (e.g., bent body, cracked handle) and confirm thrust calibration.
2. Power on the electrical equipment and let it reach normal operating mode.
3. Hold the handle and align the probe tip with target enclosure areas (e.g., weak points, gaps).
4. Apply steady 50N thrust to the probe—maintain force for 10 seconds (per standard guidelines).
5. Check if the probe penetrates the enclosure or touches hazardous internal parts.
6. Record whether the equipment meets safety requirements (pass/fail).

Applications

• Safety testing of household…
