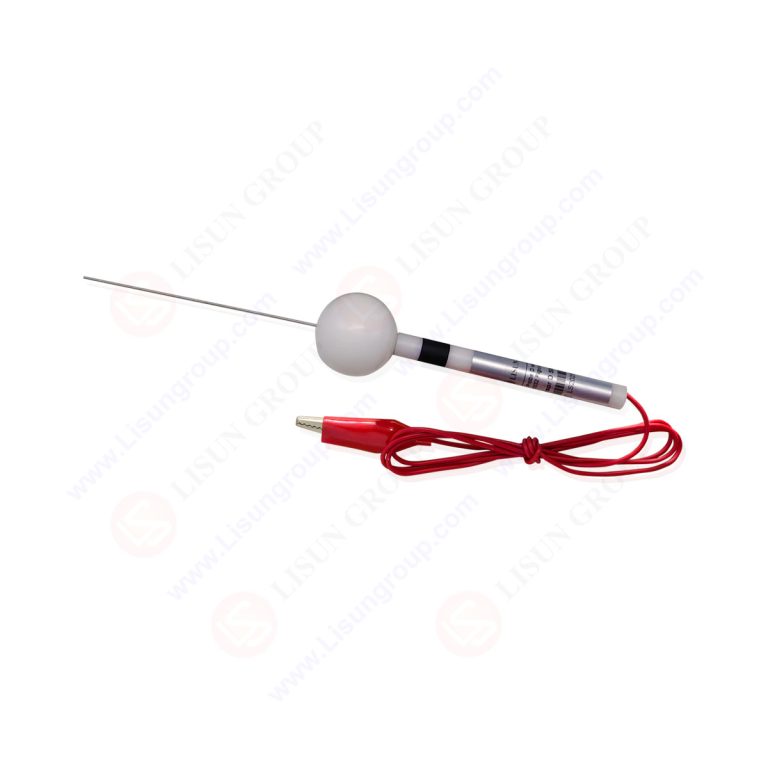

IEC 61032 Figure 4 Test Probe D with Integrated Cable

The IEC 61032 Figure 4 Test Probe D with integrated cable serves as a specialized instrument for IP4X protection verification and electric shock prevention testing of household appliances and similar electrical equipment. This probe incorporates a 1.0mm-diameter rigid test rod for accurate tool access simulation, a 35mm circular baffle to prevent excessive enclosure penetration, and an insulating handle (10mm diameter, 100mm length) for operator safety during testing procedures. The integrated cable facilitates low-voltage testing applications, while the precisely calibrated 1±0.1N thrust force ensures reliable compliance assessment. Engineered to align with international safety standards, this probe delivers consistent performance for regulatory compliance verification across diverse electrical products.

Specifications:
• Probe Type: IEC 61032 Test Probe D (with integrated cable for IP4X testing)
• Test Rod Diameter: 1.0 mm (rigid construction for consistent access simulation)
• Test Rod Length: 100 mm ± 0.2 mm
• Circular Baffle Diameter: 35 mm ± 0.2 mm (prevents excessive enclosure insertion)
• Handle Dimensions: Diameter: 10 mm; Length: 100 mm
• Handle Material: Insulating material (ensures operator safety during testing)
• Cable Inclusion: Integrated (supports low-voltage hazard verification)
• Applied Thrust: 1±0.1N (precisely calibrated force for standard compliance)
• Core Function: Verifies IP4X protection requirements; prevents tool access to hazardous components

Test Procedures:
• Conduct visual inspection of probe components (test rod, cable, baffle, handle) for any damage or deformation.
• Position the 35mm baffle flush against the appliance enclosure surface.
• Align the 1.0mm test rod with enclosure openings, connecting the integrated cable to appropriate low-voltage test equipment as required.
• Apply steady 1±0.1N thrust force to the test rod toward potential hazardous components.
• Determine whether the test rod contacts hazardous parts or the baffle penetrates the enclosure.
• Document test results to verify appliance compliance with safety requirements.
