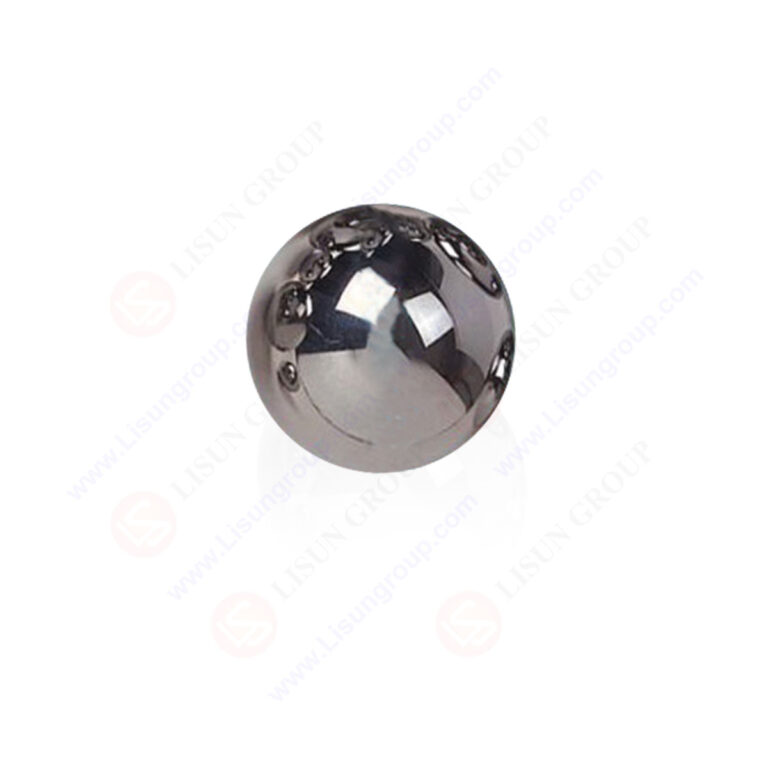

IEC 61032 Figure 5 (Test Probe 1) 50mm Test Ball

The IEC 61032 Figure 5 (Test Probe 1) 50mm Test Ball is a precision-engineered safety testing instrument designed to verify that equipment openings, including vents, gaps, and access slots, effectively prevent the ingress of 50mm-diameter foreign objects. This critical safety assessment tool mitigates the risk of foreign body intrusion, thereby protecting internal components such as electrical wiring, circuitry, and mechanical assemblies from potential damage or hazardous conditions.

Manufactured from solid stainless steel with a density of 7.85 g/cm³, this test ball delivers consistent, controlled force application to accurately simulate real-world scenarios involving accidental insertion of objects into household appliances, industrial equipment, or office machinery. The corrosion-resistant construction ensures dimensional stability and prevents deformation under standard testing forces, guaranteeing repeatable test results across multiple assessment cycles.

This instrument strictly complies with IEC 61032 requirements for test probes, making it essential for quality control departments, testing laboratories, and certification bodies conducting safety evaluations. The standardized testing methodology ensures global regulatory compliance across multiple jurisdictions and industry sectors.

Technical Specifications

• Tool Type: IEC 61032 Figure 5 (Test Probe 1) 50mm Test Ball for foreign body protection testing of equipment openings
• Material: Solid stainless steel (density: 7.85 g/cm³; corrosion-resistant; maintains dimensional integrity under standard test forces)
• Key Dimensions:
  • Ball diameter: 50 mm ± 0.1 mm
  • Ball weight: 510 g ± 10 g
• Surface Treatment: Precision-machined smooth finish with complete deburring (prevents surface damage to equipment under test; ensures uniform force distribution)
• Primary Function: Determines whether equipment openings prevent penetration by 50mm-diameter objects; evaluates foreign body protection capabilities; verifies IEC 61032 compliance

Standardized Test Procedure

1. Conduct visual inspection of the test ball for any surface imperfections, dents, cracks, or irregularities that could compromise testing accuracy.
2. Secure the equipment under test (EUT) on a stable, level surface, ensuring proper alignment of the target opening (e.g., appliance ventilation port, access panel gap).
3. Position the test ball either manually or using a calibrated test stand, maintaining perpendicular alignment with the EUT opening plane.
4. Apply a controlled 20 N ± 1 N force to advance the ball toward the opening, ceasing application upon either complete obstruction or full penetration.
5. Evaluate test outcome: penetration indicates non-compliance; obstruction confirms successful foreign body protection.
6. Document results according to IEC 61032 reporting requirements: Pass classification for no penetration; Fail classification for ball ingress.

Application Scenarios

• Ventilation opening assessment in household refrigeration units per IEC 61032 requirements
• Access panel gap testing for industrial control panels and electrical enclosures
• Office equipment safety verification including printers, copiers, and computing devices
• Medical equipment opening evaluation for patient safety compliance
• Consumer electronics testing for regulatory certification processes
