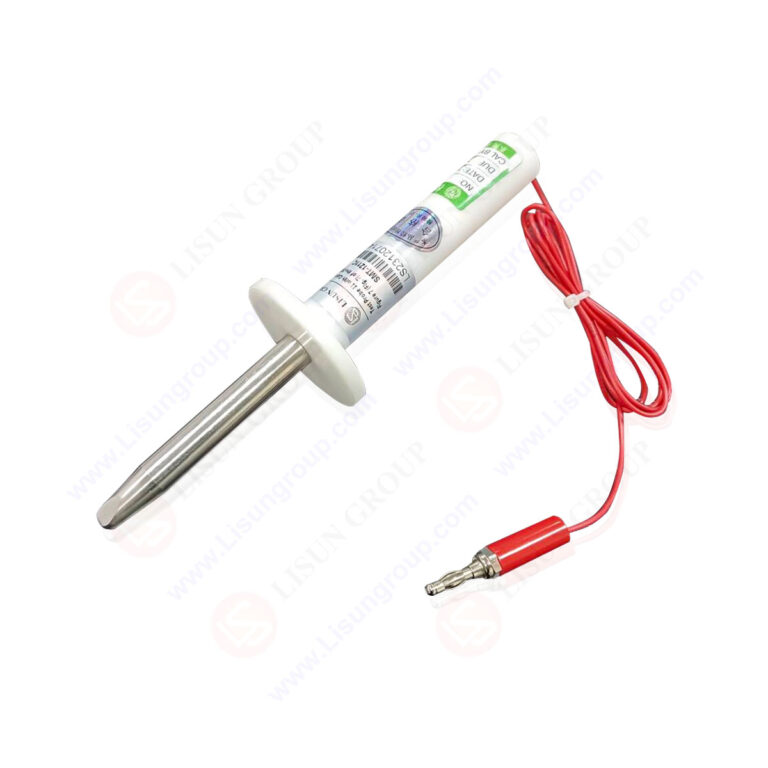

IEC 61032 Figure 7 Test Probe 11 with Integrated Continuity Cable

This IEC 61032 Figure 7 Test Probe 11 with integrated continuity cable is an unjointed rigid finger simulation tool engineered to verify accessibility to hazardous live parts in electrical equipment. Designed with an integrated cable for electrical continuity verification, it features a durable stainless steel probe with chrome-plated corrosion-resistant finish and a polyamide insulating handle with UL94 V-0 flame-retardant rating for operator safety. Fully compliant with IEC 61032 international standards, this probe is essential for testing enclosure protection and mechanical stability of equipment openings, making it indispensable for manufacturers, testing laboratories, and certification bodies validating electrical safety compliance. Specifications: • Probe Design: Unjointed rigid finger configuration (simulates human finger movement for realistic accessibility testing) • Material Composition – Probe: 304 stainless steel (chrome-plated finish, corrosion-resistant); – Handle: Polyamide (electrically insulating, UL94 V-0 flame-retardant rating) • Critical Dimensions – Probe diameter: ø12mm; – Baffle plate diameter: ø50mm; – Overall length (probe + handle): 80mm; – Tip dimension: 5±0.5mm (conforms to IEC 61032 Figure 7 requirements) • Cable Functionality: Integrated cable for electrical continuity testing (verifies contact with live parts during accessibility verification) • Surface Finish: Chrome plating (enhances wear resistance and extends operational service life) • Dimensional Tolerances: Linear dimensions ≤25mm: ±0.1mm; >25mm: ±0.2mm; Diameters: ±0.05mm • Application Compatibility: Suitable for household appliances, commercial equipment, and low-voltage industrial electrical equipment. Test Procedures: • Inspect the probe for structural integrity including straightness of stainless steel probe, absence of handle cracks, and cable insulation integrity; verify dimensional compliance and plating quality. • De-energize the equipment under test and position it on a stable, level surface. • Connect the probe’s integrated cable to a continuity tester or multimeter (when verifying contact with live parts). • Grasp the polyamide insulating handle, align the rigid probe with target openings (e.g., ventilation slots, control panel gaps, enclosure seams). • Methodically insert the probe to determine if hazardous parts are accessible; utilize the continuity tester to confirm electrical contact when applicable… (truncated)
