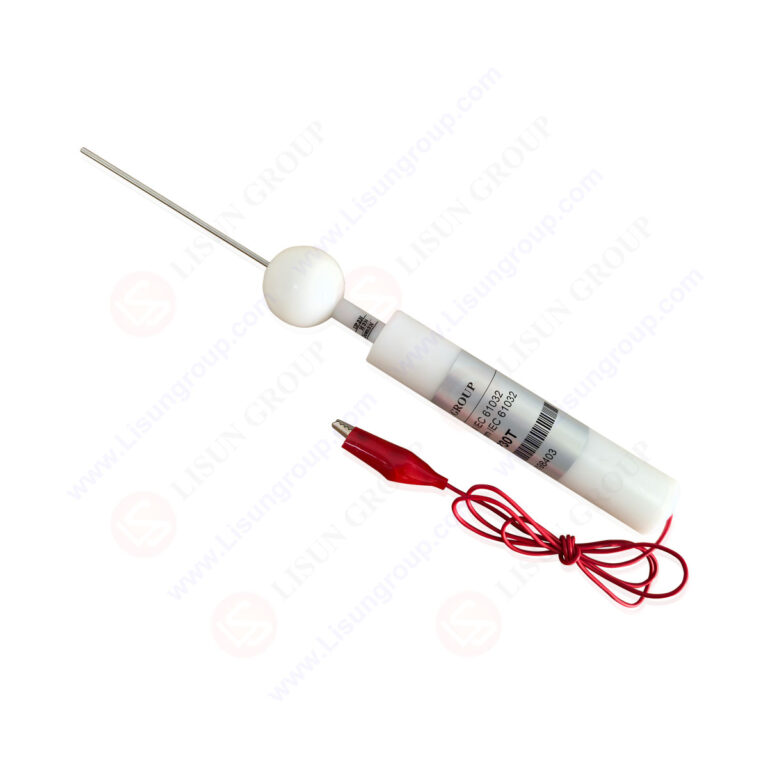

IEC 61032 Steel Rod Φ2.5mm with Dynamometer 3N

This IEC 61032-compliant steel rod with integrated 3N dynamometer is an essential test apparatus for verifying protection against access to hazardous parts in electrical equipment enclosures. Engineered to meet the specifications of IEC 61032 Figure 3, it simulates tool access to validate compliance with IP3X ingress protection ratings and safety standards such as IEC 60529 and IEC 60335-1. The apparatus features a precision-machined 2.5mm diameter rigid steel probe, a 35mm circular baffle for stable surface positioning, and an insulating handle (10mm diameter, 100mm length) for operator safety. The integrated dynamometer ensures accurate application of the specified 3N thrust force, critical for reproducible test results.

Technical Specifications

• Probe Type: Rigid steel rod with integrated 3N dynamometer
• Probe Diameter: 2.5 mm (precision-machined per IEC 61032)
• Probe Length: 100 mm ± 0.2 mm
• Circular Baffle Diameter: 35 mm ± 0.2 mm
• Handle Material: Insulating material (ensures operator safety during testing)
• Handle Diameter: 10 mm
• Handle Length: 100 mm
• Applied Thrust: 3N (controlled via calibrated built-in dynamometer)
• Probe Material: Steel (provides rigidity and wear resistance for repeated testing)
• Core Function: Verifies IP3X protection; prevents access to hazardous live or mechanical parts as per IEC 61032

Standardized Test Procedure

1. Visually inspect the steel rod assembly for any damage (e.g., bent probe, malfunctioning dynamometer indicator).
2. Position the 35mm circular baffle firmly against the surface of the equipment enclosure under test.
3. Align the 2.5mm steel rod with enclosure openings, apertures, or joints.
4. Apply a steady thrust force until the dynamometer indicates 3N, maintaining alignment.
5. Determine if the probe can contact hazardous live parts, moving parts, or other dangerous components within the enclosure.
6. Record the test outcome (pass/fail) against the required IP3X protection level or relevant safety standard criteria.

Primary Applications

• IP3X protection testing of household appliance enclosures (e.g., blenders, toasters) per IEC 60335-1.
• Safety verification of audio/video equipment (e.g., speakers, televisions) to prevent access to live parts.
• Access protection validation for luminaire housings (e.g., ceiling lights, downlights) in accordance with IEC 60598-1.
• Compliance testing of industrial control panel enclosures to prevent tool access to hazardous components as specified in IEC 61439 series standards.
