IEC 61032 Test Probe 12 – Long Test Pin

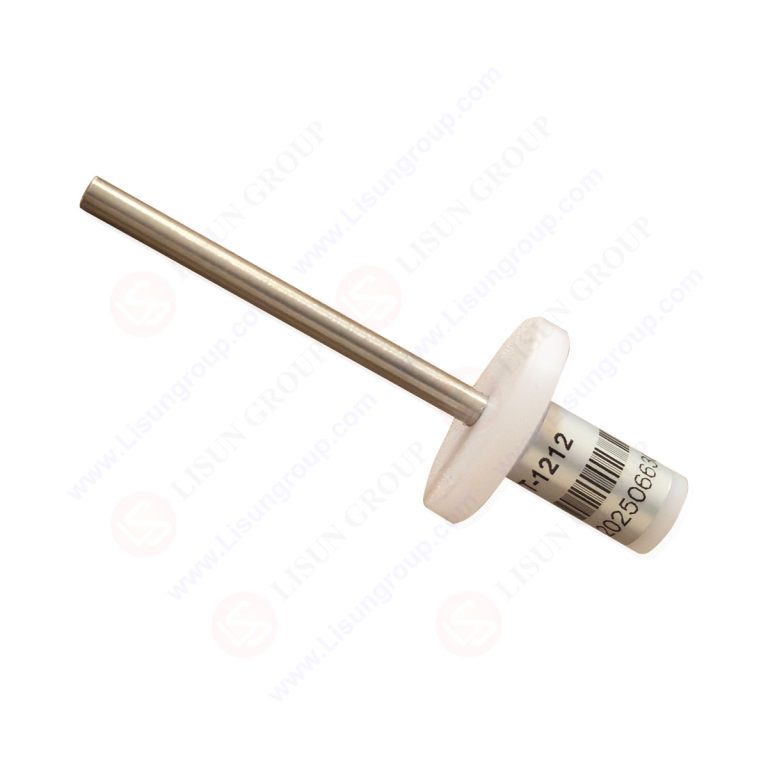

IEC 61032 Figure 8 Test Probe 12 (Long Test Pin) is engineered to verify the inaccessibility of hazardous live or mechanical components within electrical appliances to accidental contact with tool-like objects, specifically simulating pointed implements such as screwdrivers. Constructed from polished stainless steel for enhanced durability and dimensional precision, this test probe features a rigid, slender design that accurately replicates the geometry of common tools.

Equipped with insulating material for operator safety during testing procedures, this instrument complies with international safety standards including IEC 61032, UL 507, and GB/T 16842. The lightweight yet robust construction facilitates precise manipulation into confined access points, making it essential for comprehensive safety verification across residential, commercial, and industrial electrical equipment.

Technical Specifications

• Probe Type: IEC 61032 Test Probe 12 (Long Test Pin for tool-access simulation)
• Material: Stainless steel (rigid construction, corrosion-resistant properties)
• Surface Finish: Polished (prevents surface damage to appliance enclosures during testing)
• Key Dimensions:
  • Test pin primary diameter: 4 mm ± 0.05 mm
  • Insulating component diameter: 25 mm ± 0.2 mm
  • Handle/secondary diameter: 10 mm
• Insulating Material: Integrated (ensures safe operator handling during test execution)
• Primary Function: Verification of hazardous live/mechanical part inaccessibility to tool-simulating objects
• Applied Force: Negligible force application (simulates accidental tool contact conditions)

Standardized Test Procedures

1. Conduct visual inspection of the probe for physical damage (e.g., pin deformation, insulation compromise).
2. Position the probe adjacent to appliance access points where hazardous components may be exposed.
3. Gently guide the polished stainless steel pin toward enclosure openings, simulating tool insertion scenarios.
4. Verify whether the pin contacts any hazardous live or mechanical components.
5. Document test results indicating appliance compliance (pass/fail) with accessibility requirements.

Application Scenarios

• Safety compliance testing of household appliances (e.g., blenders, microwave ovens) to prevent tool access to hazardous components, per IEC 61032 Figure 8 requirements.
• Regulatory verification of industrial control panel enclosures to eliminate screwdriver contact with energized conductors.
• Accessibility validation for electronic device enclosures including power supplies and control units.
• Quality assurance testing for small kitchen appliances (e.g., coffee makers, food processors) during manufacturing and certification processes.
