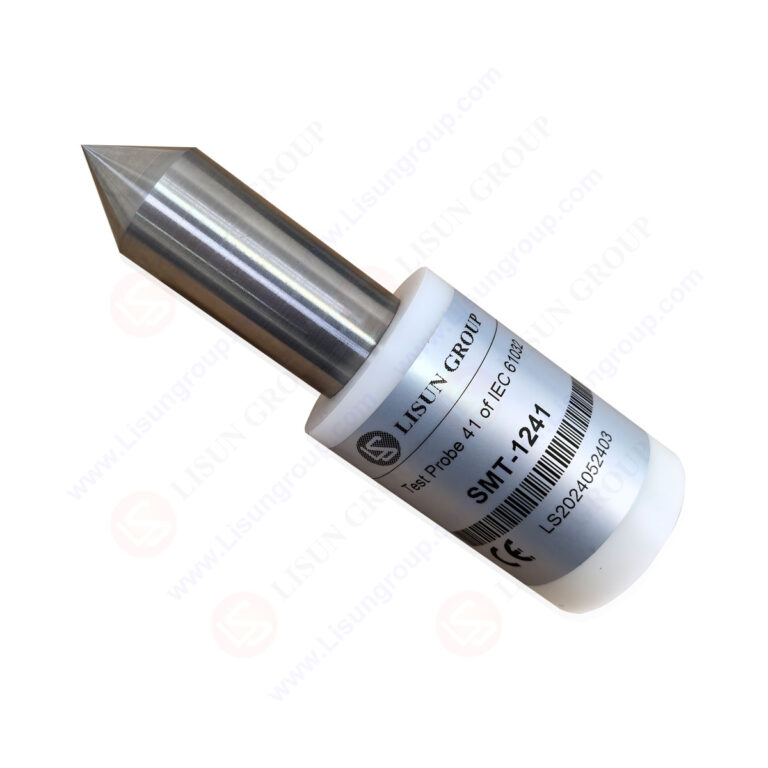

IEC 61032 Test Probe 41

This IEC 61032 Figure 16 Test Probe 41 is a precision test cone designed to evaluate the accessibility of hazardous hot or glowing components in electrical devices. Its tapered cone shape, with exact dimensions, is essential for simulating accidental human contact with heated elements. Constructed from heat-resistant stainless steel, it maintains integrity near high-temperature areas. Lightweight yet robust, it facilitates ease of handling during testing, ensuring reliability for safety compliance assessments on devices like heaters, toasters, and ovens, while adhering to international safety standards.

• Probe Type: IEC 61032 Test Probe 41 (test cone for hot/glowing parts)
• Cone Taper: 1:5 (standardized to simulate accidental human contact)
• Total Length: 100 mm ± 0.2 mm
• Effective Working Length: 80 mm
• Base Diameter: 10 mm ± 0.1 mm
• Material: Heat-resistant stainless steel (resists deformation near high temperatures)
• Applied Force: No appreciable force (mimics light, accidental contact)
• Core Function: Verifies inaccessibility of hazardous hot or glowing components in appliances

Test Procedures:

1. Inspect the test cone for any damage, such as dents or rust, that could affect results.
2. Activate the appliance and allow it to reach its operating temperature, ensuring hot/glowing parts are active.
3. Carefully guide the test cone’s tip towards access points near hot/glowing components.
4. Observe whether the cone contacts any hazardous hot or glowing parts.
5. Document whether the components remain inaccessible (pass/fail).

Applications:

• Assessing accessibility of hazardous hot/glowing parts in electrical appliances.
• Conducting safety compliance tests for heaters, toasters, ovens, and similar devices.
• Simulating accidental human contact with high-temperature components.
• Ensuring conformance with IEC 61032 Figure 15 standards for appliance safety.
• Validating safety in high-temperature environments for electrical equipment.
