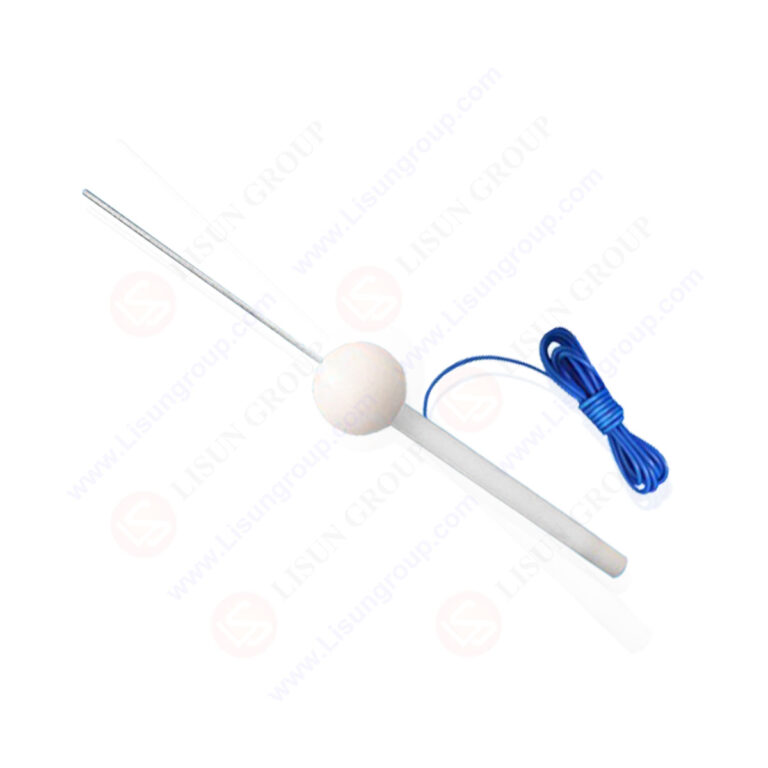

IEC 61032 Test Probe C (Figure 3) with Integrated Cable
Leave a Message
The IEC 61032 Test Probe C (Figure 3) with integrated cable serves as a critical accessibility test finger for evaluating IP3X protection and preventing electric shock hazards in household and similar electrical appliances. This instrument incorporates a 2.5mm-diameter rigid test rod measuring 100mm in length to simulate tool access, complemented by a 35mm-diameter circular baffle designed to prevent excessive insertion into equipment enclosures. The insulating handle (10mm diameter, 100mm length) ensures operator safety during testing procedures, while the device applies a precisely calibrated 3±0.3N thrust force—essential for verifying that hazardous live parts and mechanical components remain inaccessible. The integrated cable facilitates low-voltage testing applications, and the probe’s design conforms to international safety standards, ensuring reliable performance for compliance verification.
Specifications:
• Probe Type: IEC 61032 Test Probe C (Figure 3) with integrated cable for IP3X testing
• Test Rod Diameter: 2.5 mm (rigid construction for consistent tool-access simulation)
• Test Rod Length: 100 mm ± 0.2 mm
• Circular Baffle: Diameter 35 mm ± 0.2 mm (prevents excessive enclosure penetration)
• Handle Dimensions: Diameter 10 mm; Length 100 mm
• Handle Material: Insulating material (ensures operator safety during testing)
• Cable Configuration: Integrated (enables low-voltage hazardous part verification)
• Applied Thrust: 3±0.3N (precision force application for standard compliance)
• Primary Function: IP3X protection verification; prevention of tool access to hazardous live and mechanical parts
Test Procedures:
• Conduct visual inspection of probe components (test rod, cable, baffle, handle) for any damage or deformation.
• Position the 35mm baffle flush against the appliance enclosure surface.
• Align the 2.5mm test rod with enclosure openings, connecting the integrated cable to appropriate low-voltage test equipment as required.
• Apply a steady 3±0.3N thrust force to the test rod toward potential hazardous components.
• Monitor whether the test rod contacts hazardous parts or the baffle penetrates the enclosure.
• Document test results to determine compliance with applicable safety requirements.
Applications:
• IP3X protection testing of household appliances (e.g., washing machines, ovens) in accordance with IEC 61032 Figure 3 requirements.
• Electric shock prevention verification for audio/video equipment (e.g., televisions, sound systems).
• Access protection assessment for luminaire housings (e.g., ceiling-mounted lighting fixtures).
• Compliance testing for small kitchen appliances (e.g., blenders) per UL 60335-1:2023 standards.
• Safety evaluation of industrial small electrical devices (e.g., workshop ventilation equipment) to prevent tool access to hazardous components.
IEC 61032 Test Probe C with Integrated Cable
