IEC 61032 Test Probe D: IP4X Enclosure Access Verification Tool

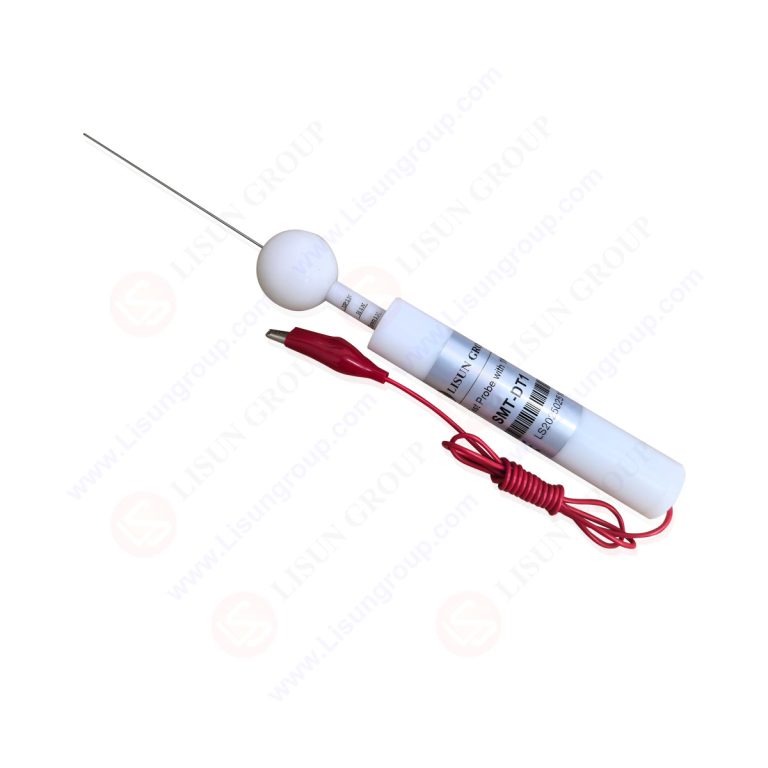

This IP4X test probe (Test Probe D) is engineered for verifying electric shock protection and enclosure safety compliance with IEC 61032 Figure 4 (Test Probe D) requirements. It incorporates a rigid 1.0mm-diameter wire for simulating tool access scenarios, complemented by a 35mm circular baffle to prevent excessive insertion. The probe delivers a calibrated 1±0.1N thrust force—essential for accurate compliance assessment—and features an insulating handle (10mm diameter, 100mm length) for operator safety during testing procedures.

Specifications::
• Probe Type: IP4X Test Probe D (compliant with IEC 61032 Test Probe D)
• Wire Diameter: 1.0 mm (rigid construction for consistent testing)
• Wire Length: 100 mm
• Circular Baffle: Diameter 35 mm (prevents excessive insertion into enclosures)
• Handle Material: Insulating material (ensures operator safety during testing)
• Handle Diameter: 10 mm
• Handle Length: 100 mm (provides ergonomic grip and control)
• Applied Thrust: 1±0.1N (precise force for standard compliance verification)
• Core Function: Verifies IP4X protection level; prevents tool access to hazardous live or mechanical components

Test Procedures:
• Inspect the probe for physical damage (e.g., wire deformation, baffle or handle cracks).
• Position the 35mm circular baffle flush against the appliance enclosure surface.
• Align the 1.0mm wire with enclosure apertures and apply 1±0.1N thrust force.
• Determine if the wire contacts hazardous live parts or if the baffle penetrates the enclosure.
• Document whether the enclosure meets IP4X and safety access requirements (pass/fail status).

Applications:
• IP4X protection testing of household appliance enclosures (e.g., refrigerators, washing machines).
• Electric shock prevention verification for audio/video equipment (e.g., soundbars, DVD players).
• Access protection assessment for luminaire housings (e.g., pendant lighting fixtures).
